HP11122HT

Home   ›   Shop   ›   HP11122HT

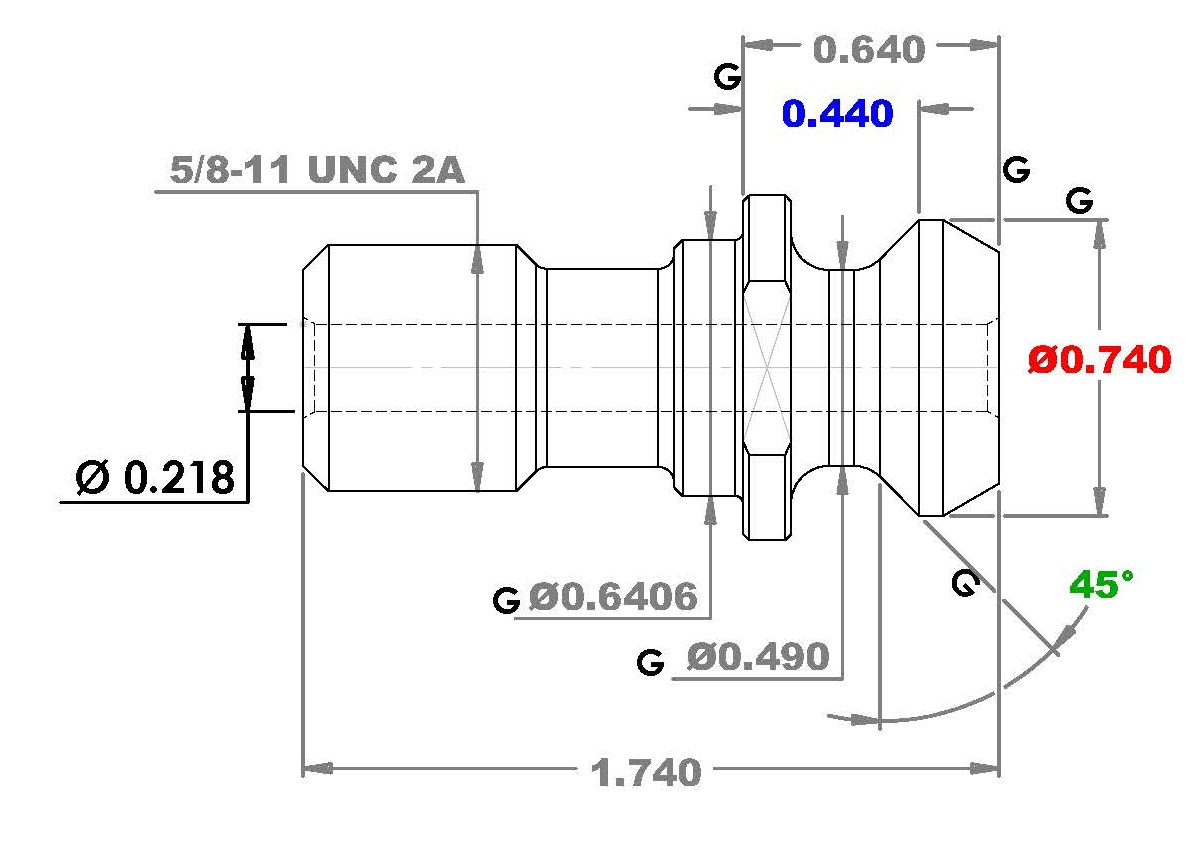

Magnetic Particle tested and certified, High Torque© (HT) Retention Knob, CAT40; 5/8-11; 45°, Coolant through

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: .625-11
Angle: 45
Knob Diameter: 0.740
L1 Length: 0.4400
L2 Length: 0.640
Flange Thickness: 0.120
Hole Diameter: 0.281
Neck Diameter: 0.490
Pilot Diameter: 0.636
Shoulder Diameter: 0.944
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: HP11122HT
Solid Version: HP11123HTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Fadal, Hurco, Milltronics, Wele/Toyoda

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
