JM11122

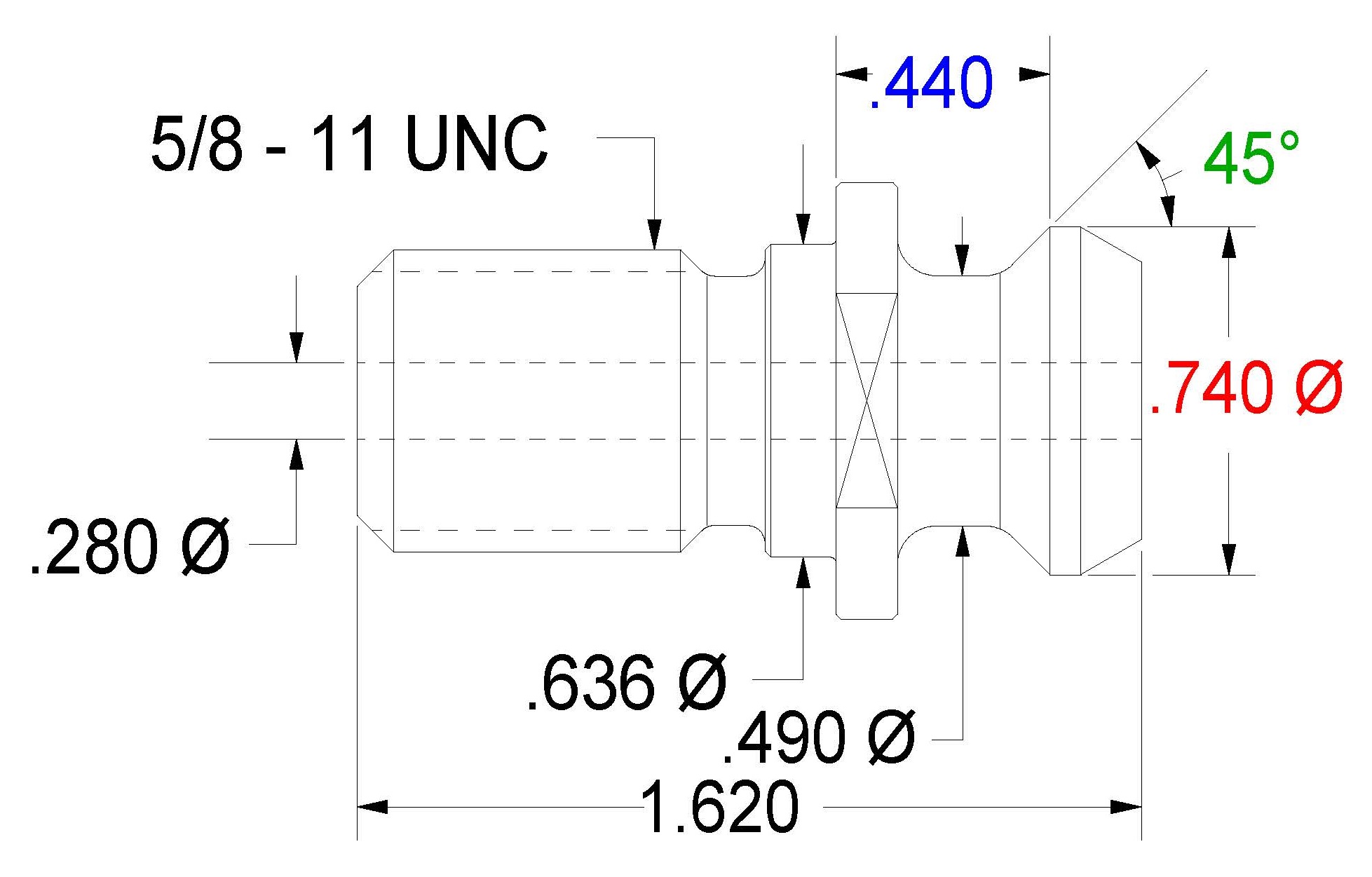

OBSOLETE-Standard retention knob; CAT40, 5/8"-11; 45°, Coolant through-See JM11122HS
| Category: | Retention Knobs |
| Thread Size: | .625-11 |
| Angle: | 45 |
| Knob Diameter: | 0.740 |
| L1 Length: | 0.4400 |
| L2 Length: | 0.640 |
| Flange Thickness: | 0.120 |
| Hole Diameter: | 0.281 |
| Neck Diameter: | 0.490 |
| Pilot Diameter: | 0.636 |
| Shoulder Diameter: | 0.900 |
| Wrench Flat Diameter: | 0.745 |
| Socket Part #: | RKW40 |
| Number: | JM11122 |
| Solid Version: | JM11123HS, JM11123HTHS, JM31226-HHT(3), JM31226-HHTHS(3) (3) Note difference in hole size |
| Alternate Part: | JM11122HS, JM11122HT, JM11122HTHS, JM31226HS(3), JM31226HT(3), JM31226HTHS(3) - (3) Note difference in hole size |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
| Retention Knob Supply: | RK111-22 |
| Sandvik: | 390.45-5/8 UNC-01 |
| Seco: | 1635 |
| Techniks: | 21003-C |
| HPI: | HPS-D72 |
| Big Kaiser: | PYN40C |
| Command: | RC4E-0001 |
| Davies: | PSC-475 |
| Kennametal: | RK40CV |
| Older Kennametal: | 1026590 |
| Lyndex: | C40-STD* |
| MSC: | 84935618 |
| New MSC: | 68952092 |
| Parlec: | 40TRK |
| For Machines (see disclaimer)*: | Fadal, Hurco, Milltronics, Wele/Toyoda |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
