JM11122HTHS

Home   ›   Shop   ›   JM11122HTHS

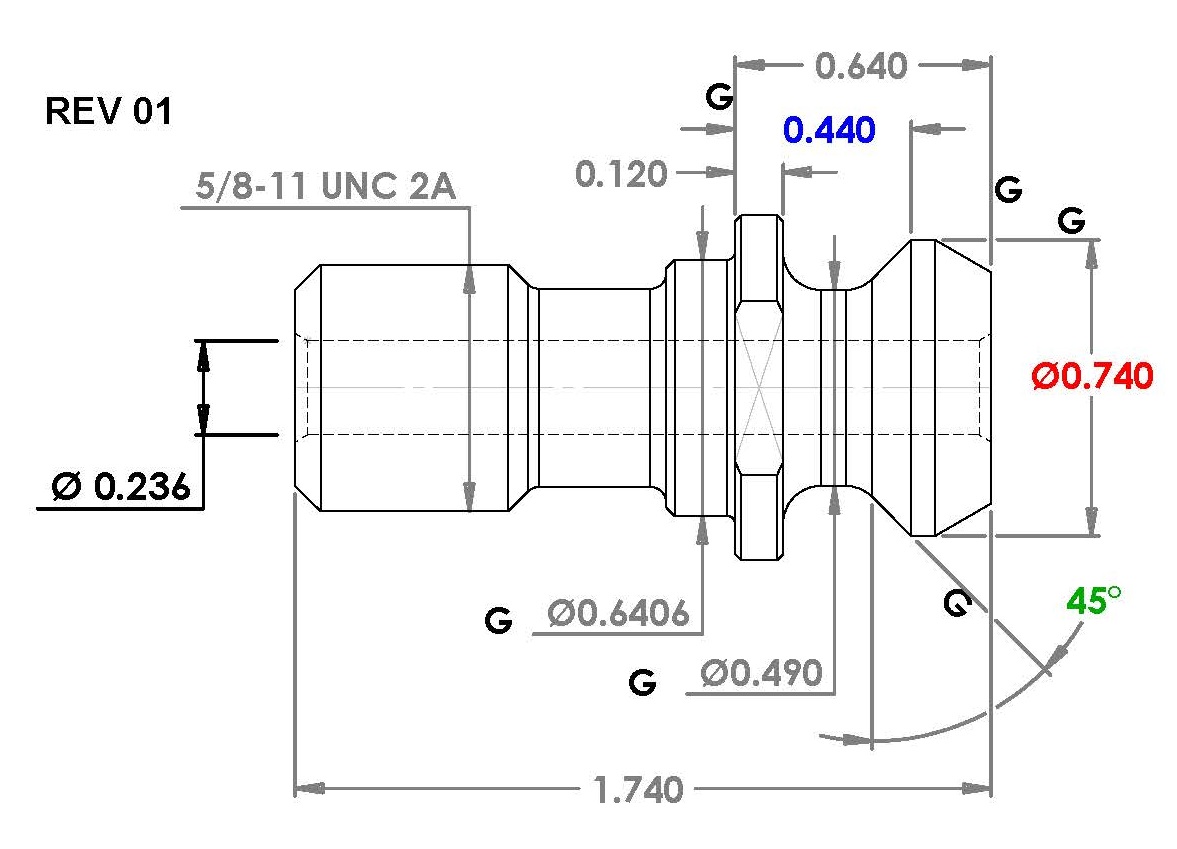

High Torque© (HT) retention knob, CAT40; 5/8"-11, 45°, Coolant through

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: .625-11
Angle: 45
Knob Diameter: 0.740
L1 Length: 0.4400
L2 Length: 0.640
Flange Thickness: 0.120
Hole Diameter: 0.236
Neck Diameter: 0.490
Pilot Diameter: 0.641
Shoulder Diameter: 0.944
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: JM11122HTHS
Solid Version: JM11123HTHS, JM31226-HHT(3), JM31226-HHTHS(3) (3) Note difference in hole size
Alternate Part: JM31226HT(3), JM31226HTHS(3) - (3) Note difference in hole size
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Fadal, Hurco, Milltronics, Wele/Toyoda

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
