OBSOLETE-Standard retention knob; BT40, M16X2; 45°; Solid

Category: Retention Knobs

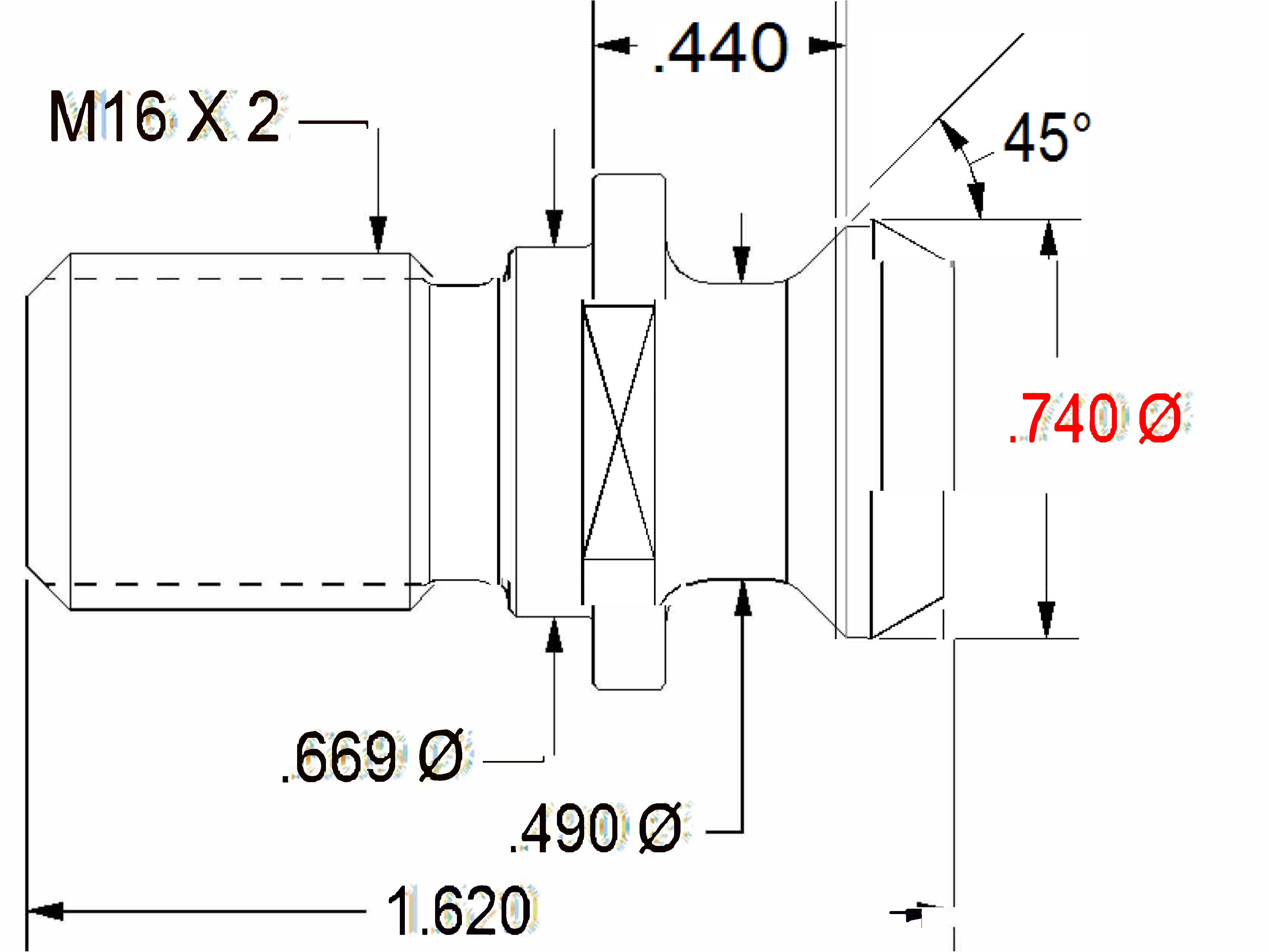

Thread Size: M16X2.0
Angle: 45
Knob Diameter: 0.740
L1 Length: 0.4400
L2 Length: 0.640
Flange Thickness: 0.120
Hole Diameter: -
Neck Diameter: 0.490
Pilot Diameter: -
Shoulder Diameter: 0.930
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: JM11125
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Retention Knob Supply: RK111-25
Seco: 1614
Techniks: 17836
Kenn 2: 2878489
Kennametal: RK111-25
Lyndex: B40-STD
Parlec: A40TRK

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
