JM11126AHTHS

Home   ›   Shop   ›   JM11126AHTHS

High Torque© High Strength (HTHS) retention knob; BT40, M16X2; 45°, Coolant through; Made from 9310H steel, 40% stronger; replaces JM11126AHT

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

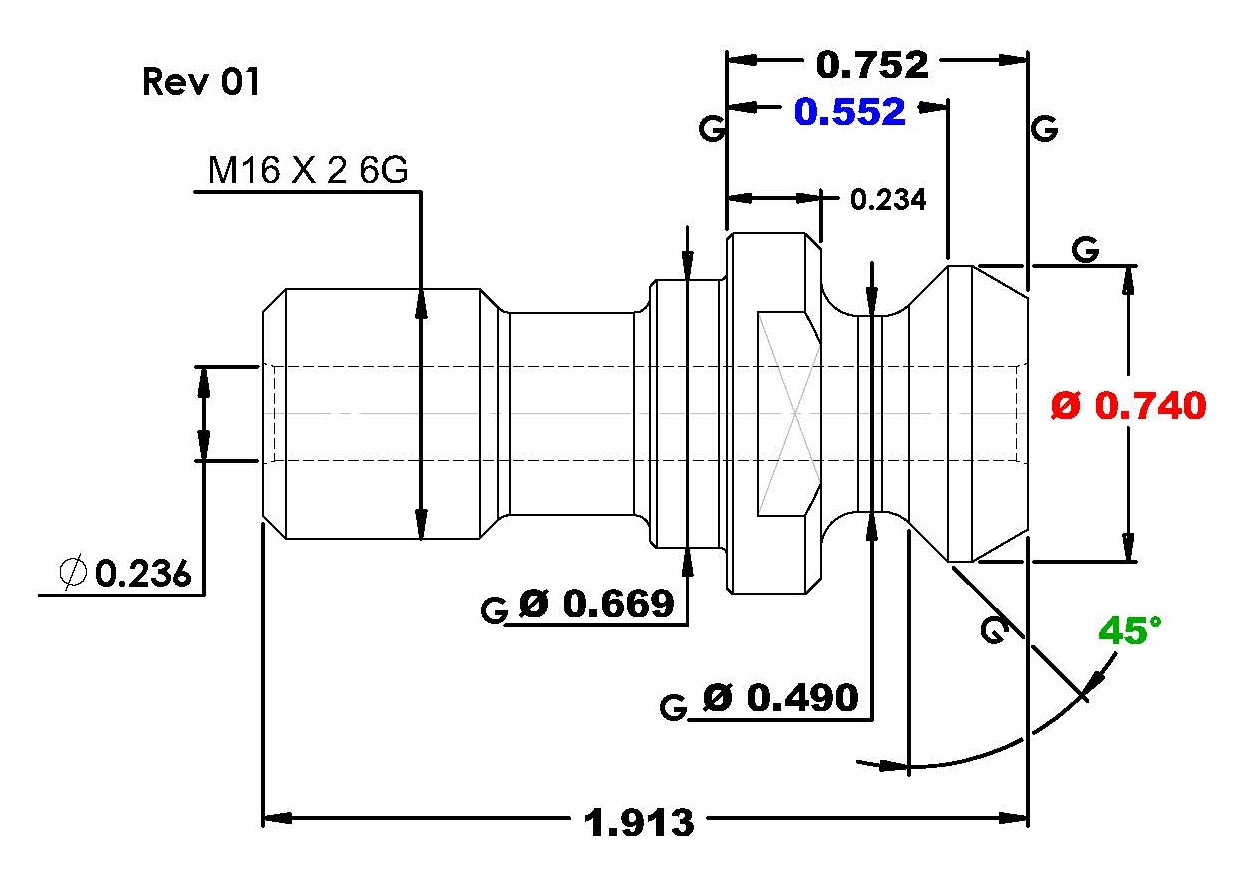

Thread Size: M16X2.0
Angle: 45
Knob Diameter: 0.740
L1 Length: 0.5520
L2 Length: 0.752
Flange Thickness: 0.234
Hole Diameter: 0.281
Neck Diameter: 0.490
Pilot Diameter: 0.669
Shoulder Diameter: 0.930
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: JM11126AHTHS
Solid Version: JM11126HTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Fadal, Mazak

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
