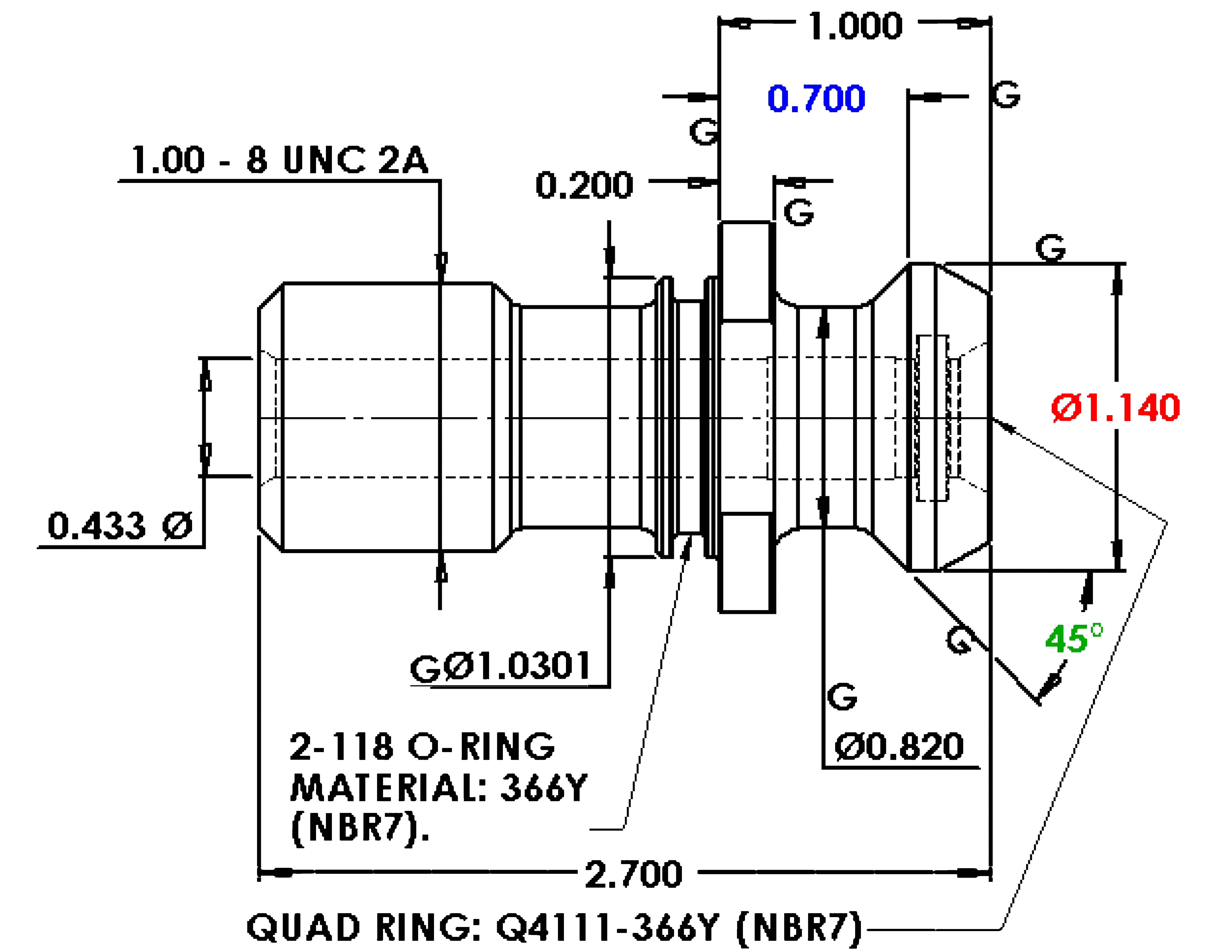

High Torque© retention knob; CAT50, 1"-8; 45°, Coolant through, O-rings included

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: 1.00-8
Angle: 45
Knob Diameter: 1.140
L1 Length: 0.7000
L2 Length: 1.000
Flange Thickness: 0.200
Hole Diameter: 0.433
Knob Side O-Ring: Q4111-366Y(QUAD Ring)
Neck Diameter: 0.820
Pilot Diameter: 1.030
Shoulder Diameter: 1.438
Wrench Flat Diameter: 1.245
Socket Part #: RKW50
Number: JM11175HT
Alternate Part: JM11180HTHS (3) - (3) Note difference in hole size
Thread Side O-Ring: 2-118-N674-70
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
