High Torque© retention knob, BT30, M12X1.75, 60°,Coolant through; replaces JM31109AC

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

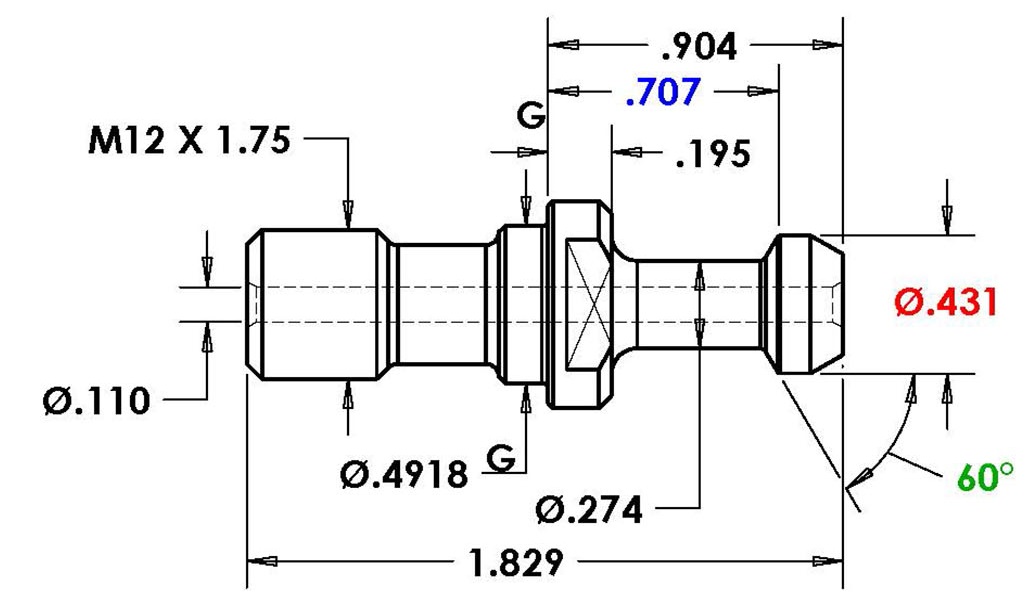

Thread Size: M12X1.75
Angle: 60
Knob Diameter: 0.431
L1 Length: 0.7070
L2 Length: 0.904
Flange Thickness: 0.195
Hole Diameter: 0.110
Neck Diameter: 0.274
Pilot Diameter: 0.492
Shoulder Diameter: 0.648
Wrench Flat Diameter: 0.505
Socket Part #: RKW30M
Number: JM31109ACHT
Solid Version: JM31109AHTHS
Alternate Part: JM31109ACHTHS, JM25084ACHTHS(2) - (2) This knob was used prior to 2013 Brother retention knob spec. modification; replaced by JM25084ACHTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
