JM31109ACHTHS
High Torque© High Strength (HTHS) retention knob, BT30, M12X1.75; 60°, Coolant through, Made from 9310H steel, 40% stronger; replaces JM31109AC
This knob was used prior to 2013 Brother retention knob spec. modification; replaced by JM25084ACHTHS

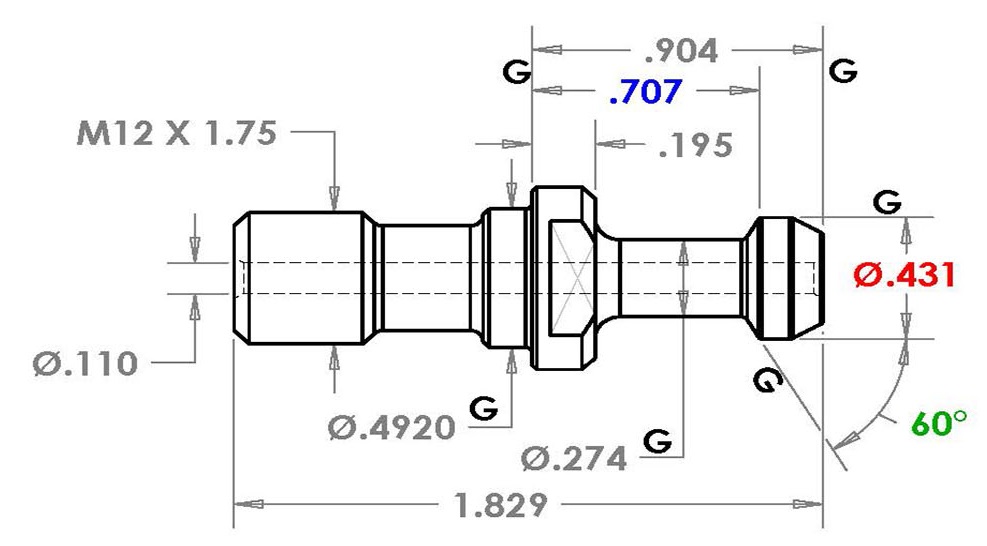

| Category: | Retention Knobs |
| Thread Size: | M12X1.75 |
| Angle: | 60 |
| Knob Diameter: | 0.431 |
| L1 Length: | 0.7070 |
| L2 Length: | 0.904 |
| Flange Thickness: | 0.195 |
| Hole Diameter: | 0.110 |
| Neck Diameter: | 0.274 |
| Pilot Diameter: | 0.492 |
| Shoulder Diameter: | 0.648 |
| Wrench Flat Diameter: | 0.505 |
| Socket Part #: | RKW30M |
| Number: | JM31109ACHTHS |
| Solid Version: | JM31109AHTHS |
| Alternate Part: | JM25084ACHTHS(2) - (2) This knob was used prior to 2013 Brother retention knob spec. modification; replaced by JM25084ACHTHS |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
