OBSOLETE-Standard retention knob, BT30, M12x1.75; 45°, Coolant through-See JM31109CHS, JM31109CHTHS

Category: Retention Knobs

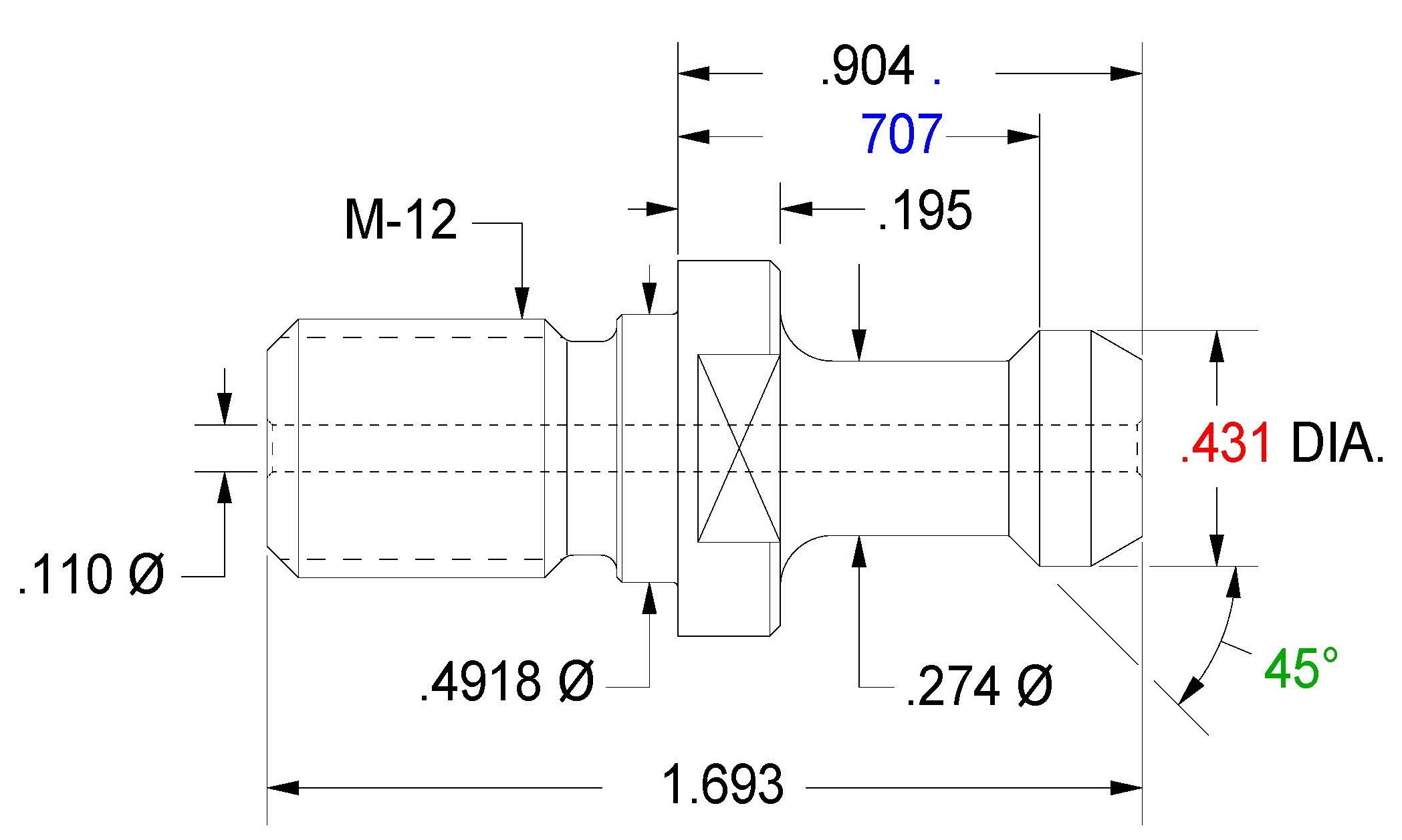

Thread Size: M12X1.75
Angle: 45
Knob Diameter: 0.431
L1 Length: 0.7070
L2 Length: 0.904
Flange Thickness: 0.195
Hole Diameter: 0.110
Neck Diameter: 0.274
Pilot Diameter: 0.492
Shoulder Diameter: 0.648
Wrench Flat Diameter: 0.505
Socket Part #: RKW30M
Number: JM31109C
Solid Version: JM31109HS, JM31109HTHS
Alternate Part: JM31109CHS, JM31109CHTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Haas, Hyundai, Hyundai-Kia, Matsuura

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
