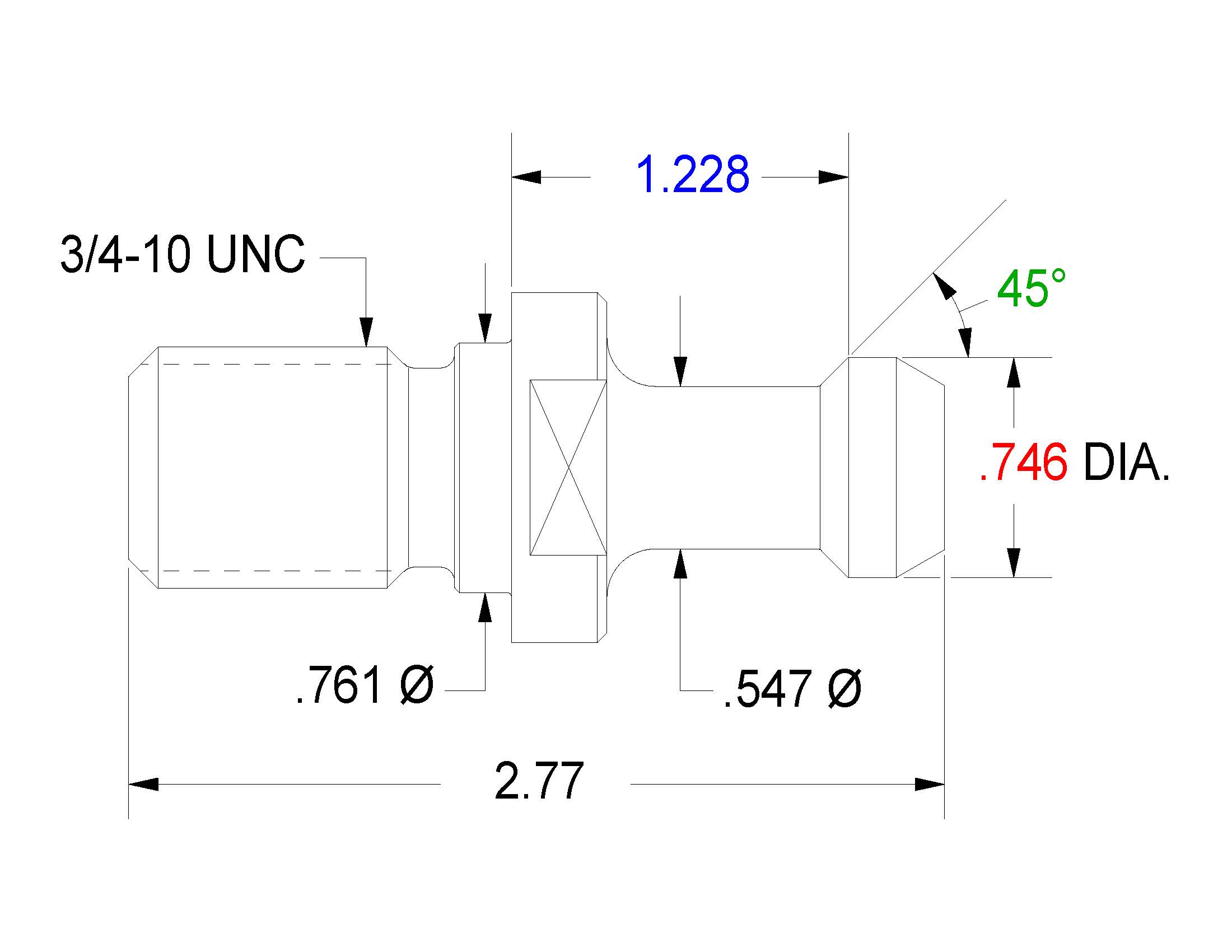

Standard retention knob, CAT 45, 3/4"-10, 45°, Solid

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: .750-10
Angle: 45
Knob Diameter: 0.746
L1 Length: 1.2280
L2 Length: 1.583
Flange Thickness: 0.312
Hole Diameter: -
Neck Diameter: 0.549
Pilot Diameter: 0.761
Shoulder Diameter: 1.198
Wrench Flat Diameter: 0.995
Socket Part #: RKW45
Number: JM31116
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Retention Knob Supply: RK311-16
Seco: 1663
Command: RB5E-0001
Kennametal: RK311-16
Lyndex: C45-4500
MSC: 1401801
For Machines (see disclaimer)*: Okd, Ooya, Pratt & Whitney

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
