JM31118DHTHS

Home   ›   Shop   ›   JM31118DHTHS

High Torque© High Strength (HTHS) retention knob, CAT 50, 1"-8, 45°, Coolant through; Made from 9310H steel, 40% stronger; replaces JM31645, JM31645HT, JM31645HTHS

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

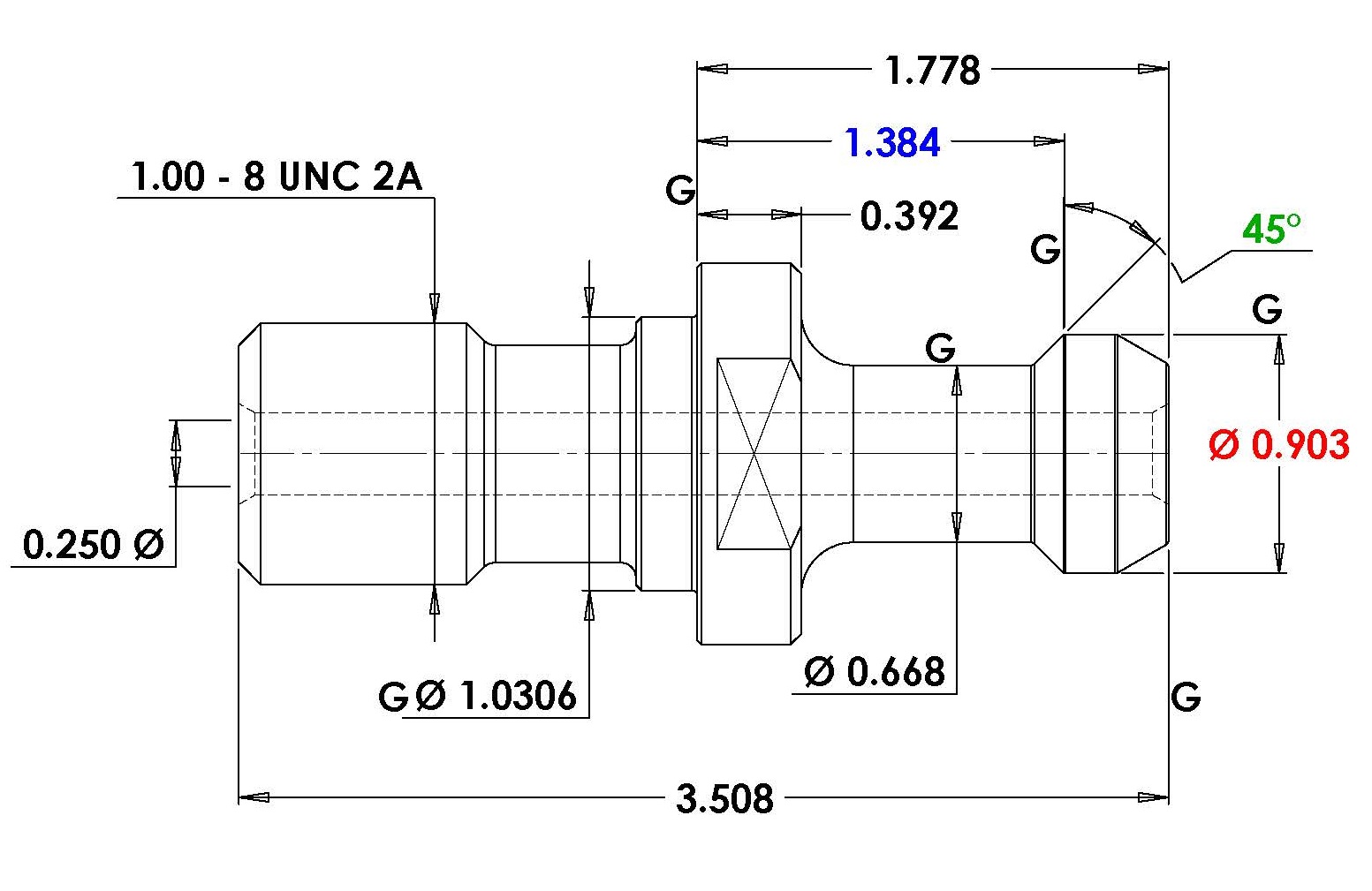

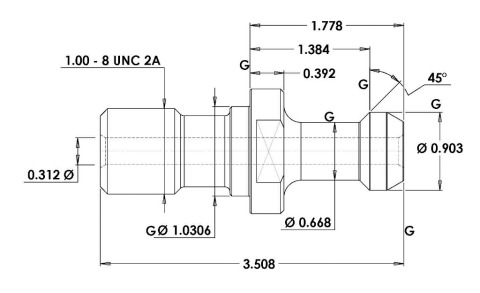

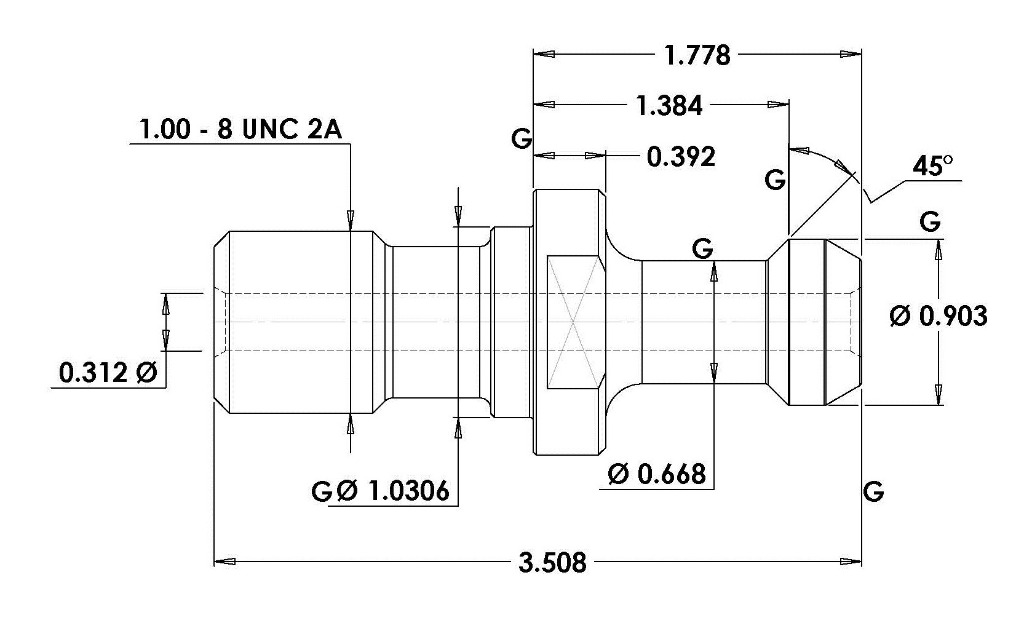

Thread Size: 1.00-8
Angle: 45
Knob Diameter: 0.903
L1 Length: 1.3840
L2 Length: 1.778
Flange Thickness: 0.392
Hole Diameter: 0.312
Neck Diameter: 0.668
Pilot Diameter: 1.026
Shoulder Diameter: 1.438
Wrench Flat Diameter: 1.245
Socket Part #: RKW50
Number: JM31118DHTHS
Solid Version: JM31118HTHS
Alternate Part: JM31118DHT
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Doosan, Enshu, Haas, Toyoda, Viper

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.

WARNING: The steel alloy used in this product contains chromium and nickel. This product can expose you to chemicals including chromium and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
