High Torque© (HT) retention knob; CAT60, 1.25"-7; 45°, Coolant through

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

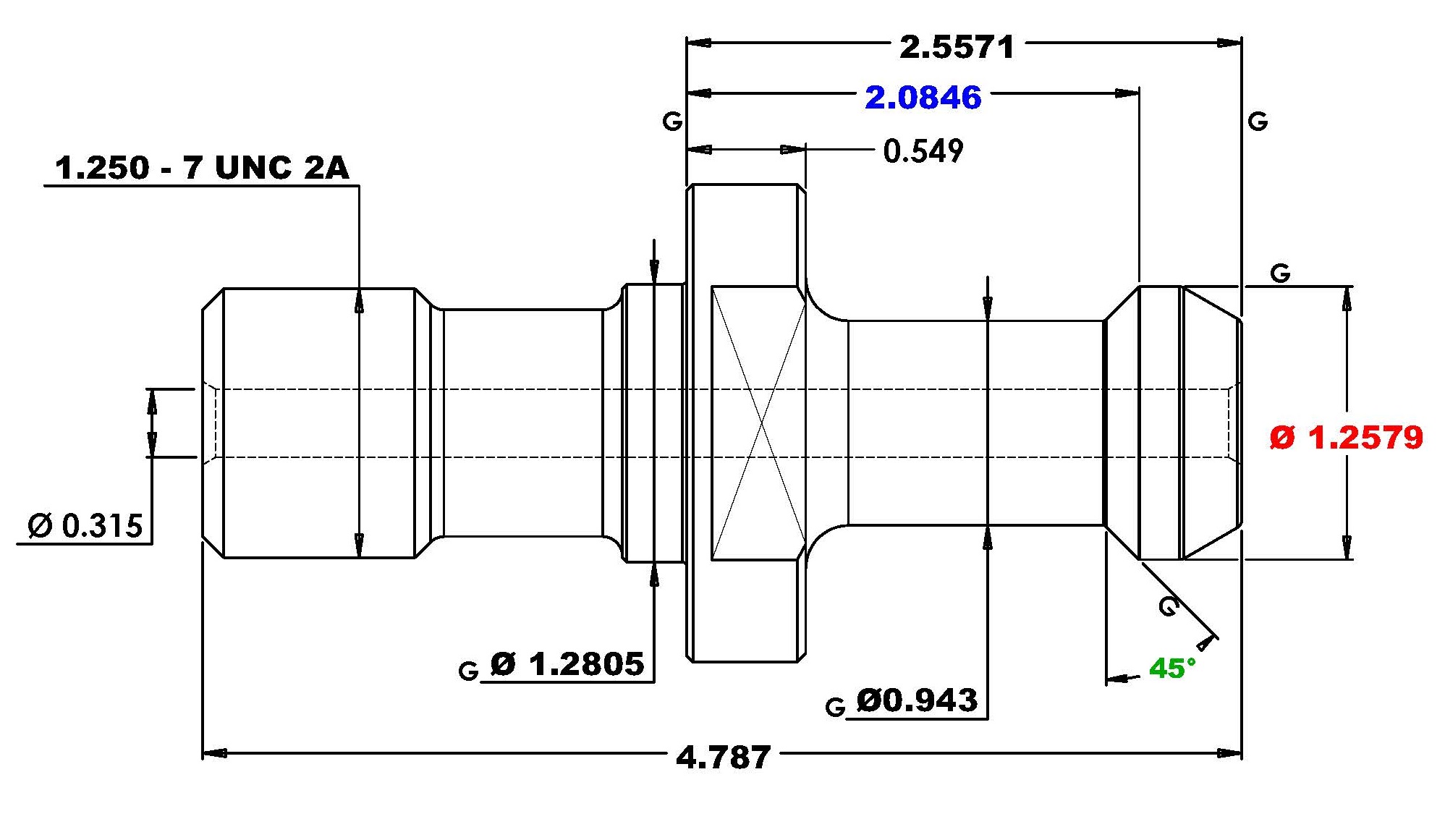

Thread Size: 1.250-7
Angle: 45
Knob Diameter: 1.258
L1 Length: 2.0846
L2 Length: 2.557
Flange Thickness: 0.549
Hole Diameter: 0.315
Neck Diameter: 0.942
Pilot Diameter: 1.285
Shoulder Diameter: 2.210
Wrench Flat Diameter: 1.804
Socket Part #: N/A
Number: JM31120CHT
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
