JM31225HT

Home   ›   Shop   ›   JM31225HT

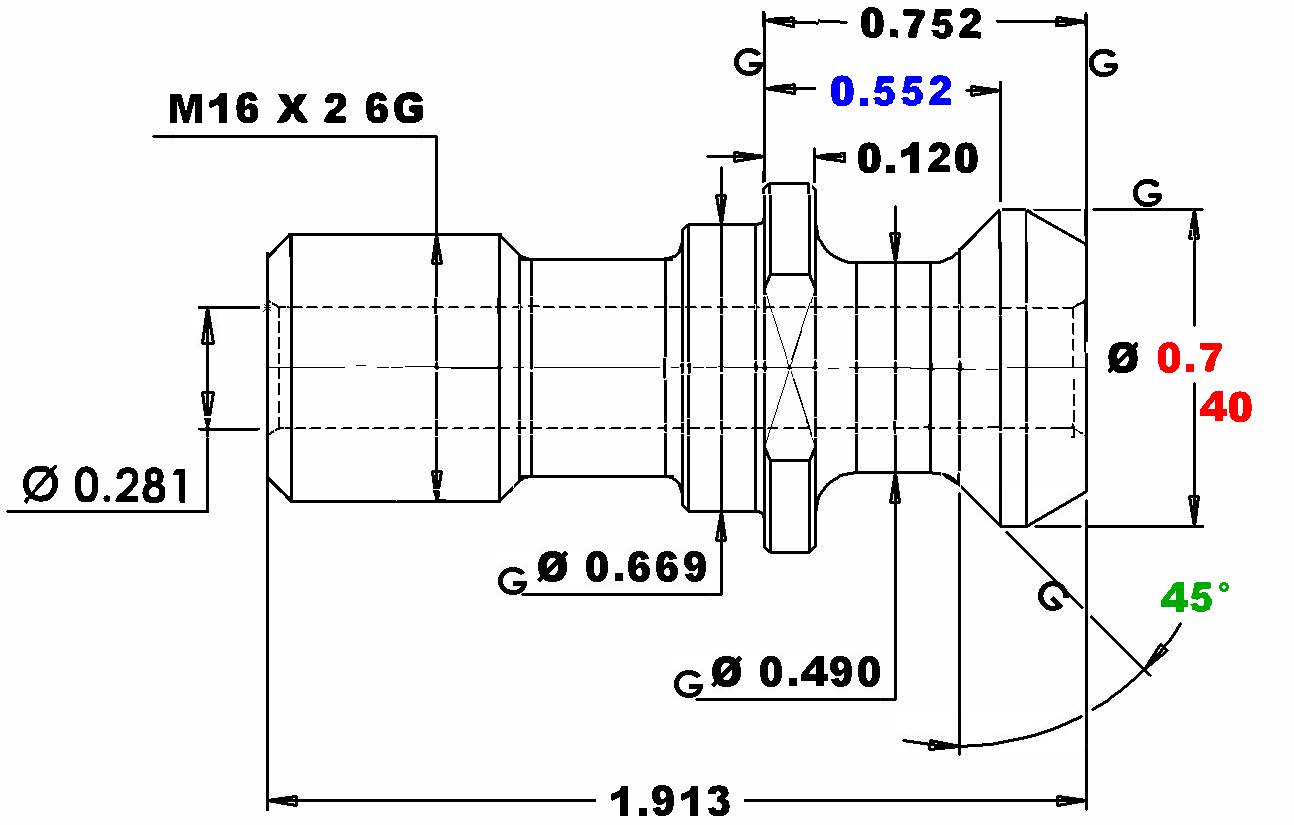

High Torque© retention knob, BT40, M16X2, 45°, Coolant through

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: M16X2.0
Angle: 45
Knob Diameter: 0.740
L1 Length: 0.5520
L2 Length: 0.752
Flange Thickness: 0.120
Hole Diameter: 0.281
Neck Diameter: 0.490
Pilot Diameter: 0.669
Shoulder Diameter: 0.938
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: JM31225HT
Solid Version: JM31225-HHTHS
Alternate Part: JM31225HTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Mazak

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
