JM31225HTHS

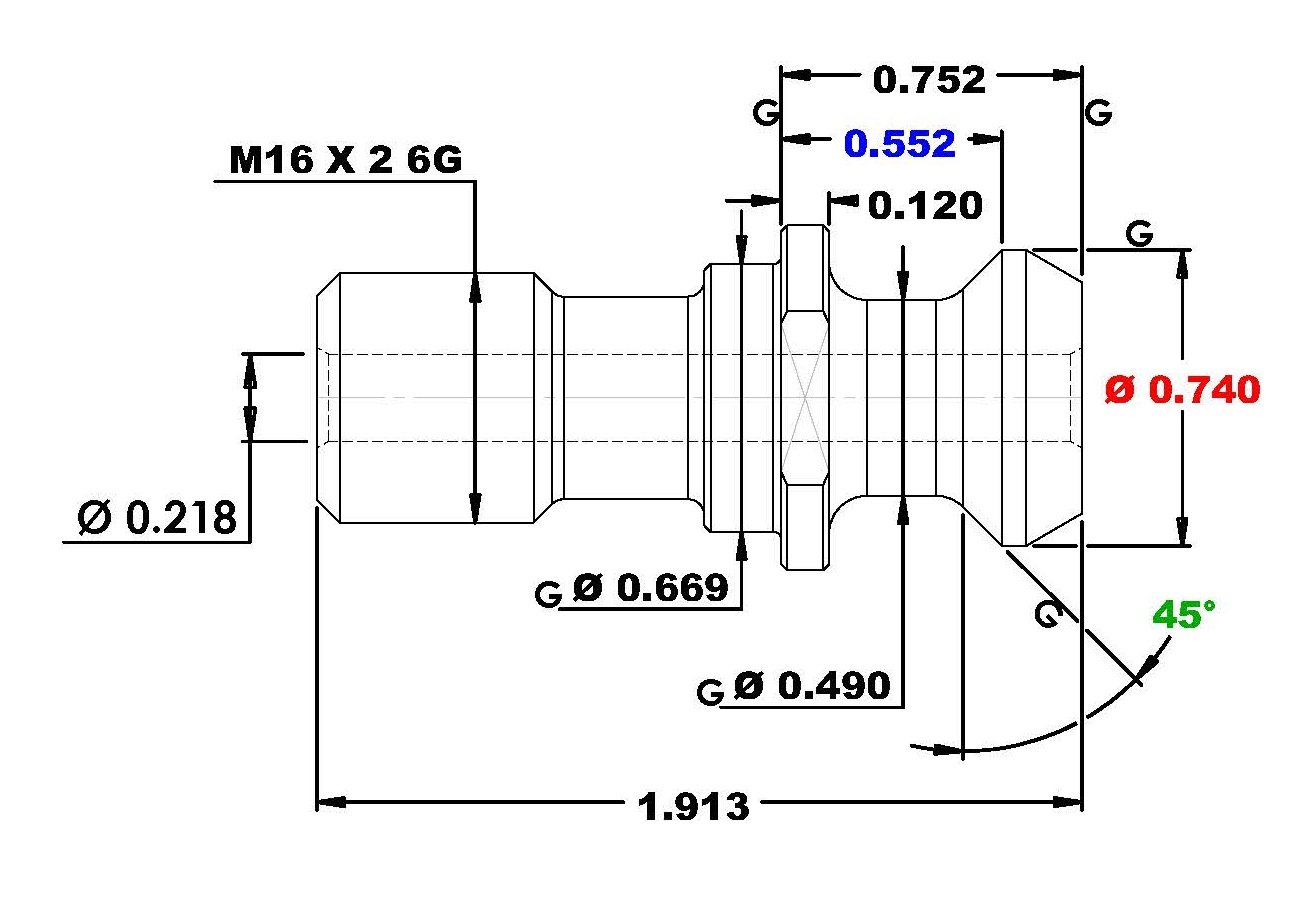

High Torque© High Strength (HTHS) retention knob, BT40, M16X2; 45°, Coolant through, Made from 9310H steel, 40% stronger
| Category: | Retention Knobs |
| Thread Size: | M16X2.0 |
| Angle: | 45 |
| Knob Diameter: | 0.740 |
| L1 Length: | 0.5520 |
| L2 Length: | 0.752 |
| Flange Thickness: | 0.120 |
| Hole Diameter: | 0.281 |
| Neck Diameter: | 0.490 |
| Pilot Diameter: | 0.669 |
| Shoulder Diameter: | 0.938 |
| Wrench Flat Diameter: | 0.745 |
| Socket Part #: | RKW40 |
| Number: | JM31225HTHS |
| Solid Version: | JM31225-HHTHS |
| Alternate Part: | JM31225HT |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
| For Machines (see disclaimer)*: | Mazak |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
