JM31226-HHT

Home   ›   Shop   ›   JM31226-HHT

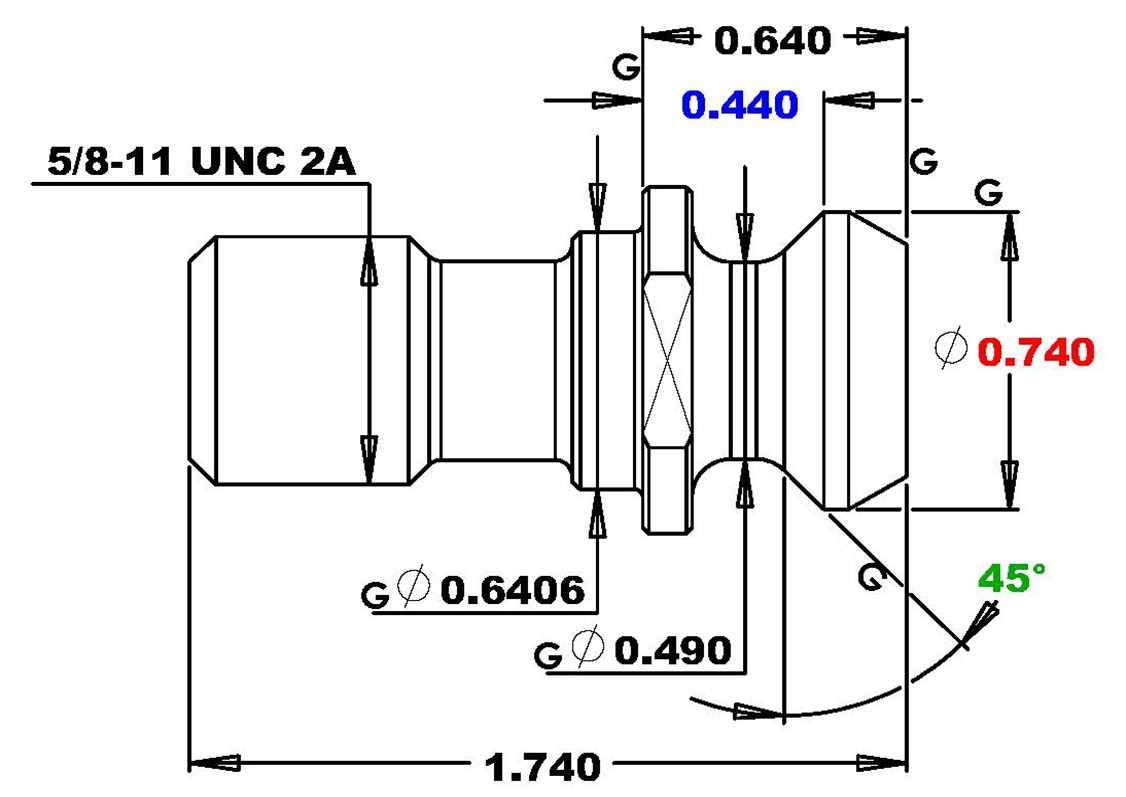

High Torque© (HT) retention knob, CAT40; 5/8"-11, 45°, Solid; Replaces JM31226-H

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: .625-11
Angle: 45
Knob Diameter: 0.740
L1 Length: 0.4400
L2 Length: 0.640
Flange Thickness: 0.120
Hole Diameter: -
Neck Diameter: 0.490
Pilot Diameter: -
Shoulder Diameter: 0.862
Wrench Flat Diameter: 0.765
Socket Part #: RKW40
Number: JM31226-HHT
Coolant Version: JM31226HT, JM31226HTHS, JM11122HT (3), JM11122HTHS (3) - (3) Note difference in hole size
Alternate Part: JM31226-HHT, JM31226-HHTHS, JM11123HTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Mazak

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.

WARNING: The steel alloy used in this product contains chromium and nickel. This product can expose you to chemicals including chromium and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
