JM31226-HHTHS

Home   ›   Shop   ›   JM31226-HHTHS

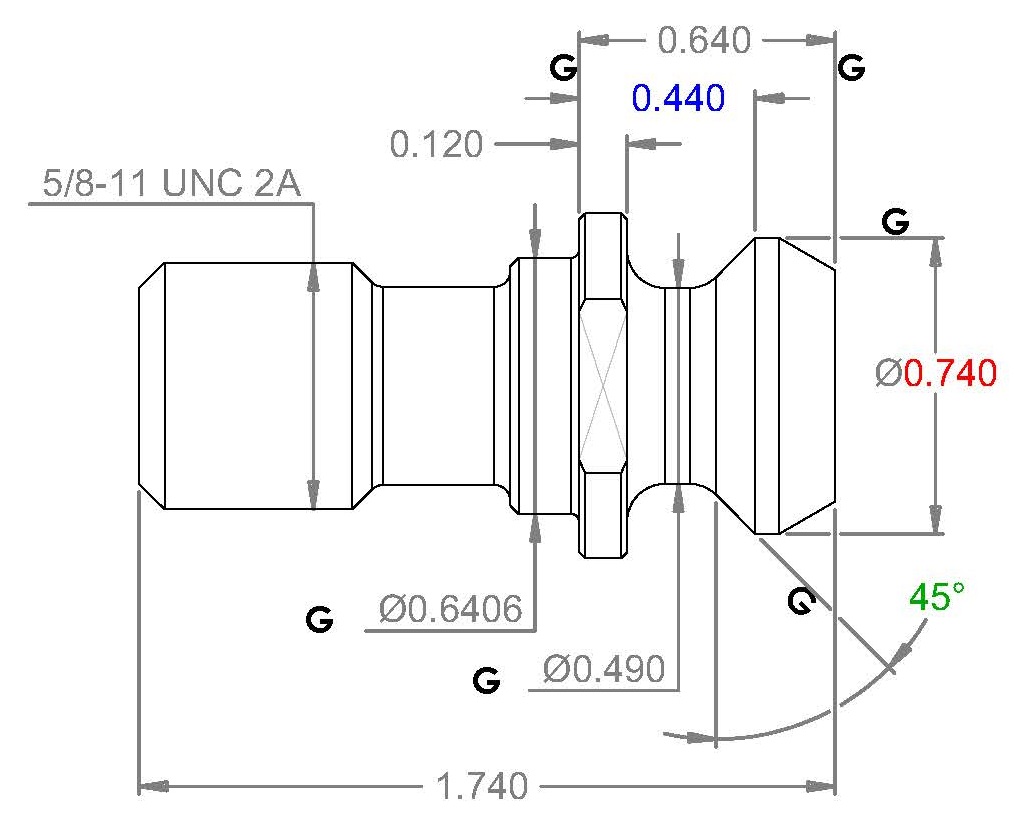

High Torque© High Strength (HTHS) retention knob, CAT 40, 5/8"-11; 45°, Solid, Made from 9310H steel, 40% stronger

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: .625-11
Angle: 45
Knob Diameter: 0.740
L1 Length: 0.4400
L2 Length: 0.640
Flange Thickness: 0.120
Hole Diameter: -
Neck Diameter: 0.490
Pilot Diameter: 0.641
Shoulder Diameter: 0.862
Wrench Flat Diameter: 0.765
Socket Part #: RKW40
Number: JM31226-HHTHS
Coolant Version: JM31226HT, JM31226HTHS, JM11122HT (3), JM11122HTHS (3) - (3) Note difference in hole size
Alternate Part: JM31226-HHT, JM31226-HHTHS, JM11123HTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Mazak

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
