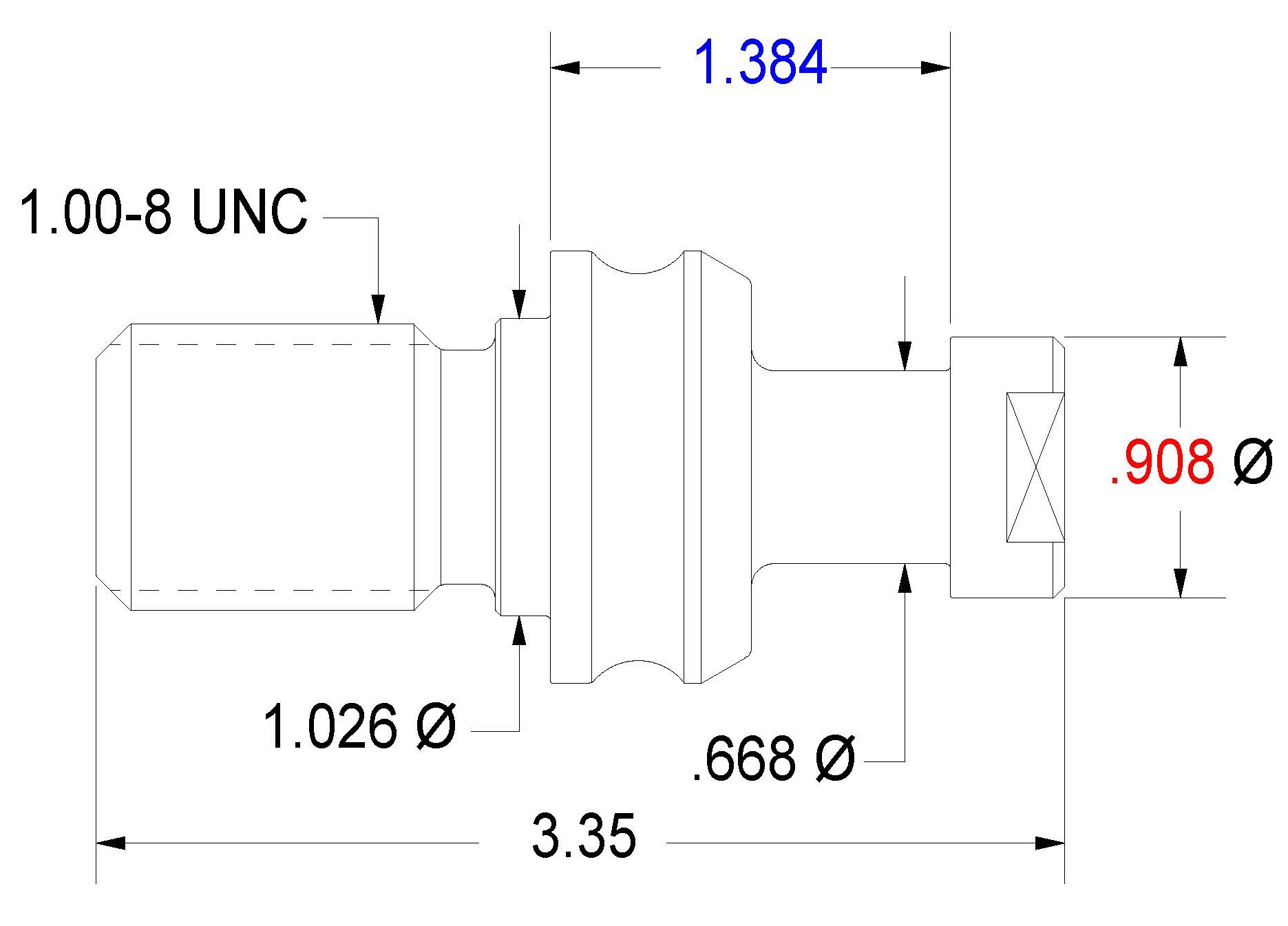

OBSOLETE-Standard retention knob, CAT50, 1"-8, 90°, Solid

Category: Retention Knobs
Thread Size: 1.00-8
Angle: 90
Knob Diameter: 0.903
L1 Length: 1.3840
L2 Length: 1.784
Flange Thickness: 0.695
Hole Diameter: -
Neck Diameter: 0.667
Pilot Diameter: 1.028
Shoulder Diameter: 0.903
Wrench Flat Diameter: 0.741
Socket Part #: RKW50
Number: JM31244A
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Retention Knob Supply: RK312-44A
Seco: 1687
Command: RB6E-0100**
Lyndex: C50-MAZAK
For Machines (see disclaimer)*: Mazak

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
