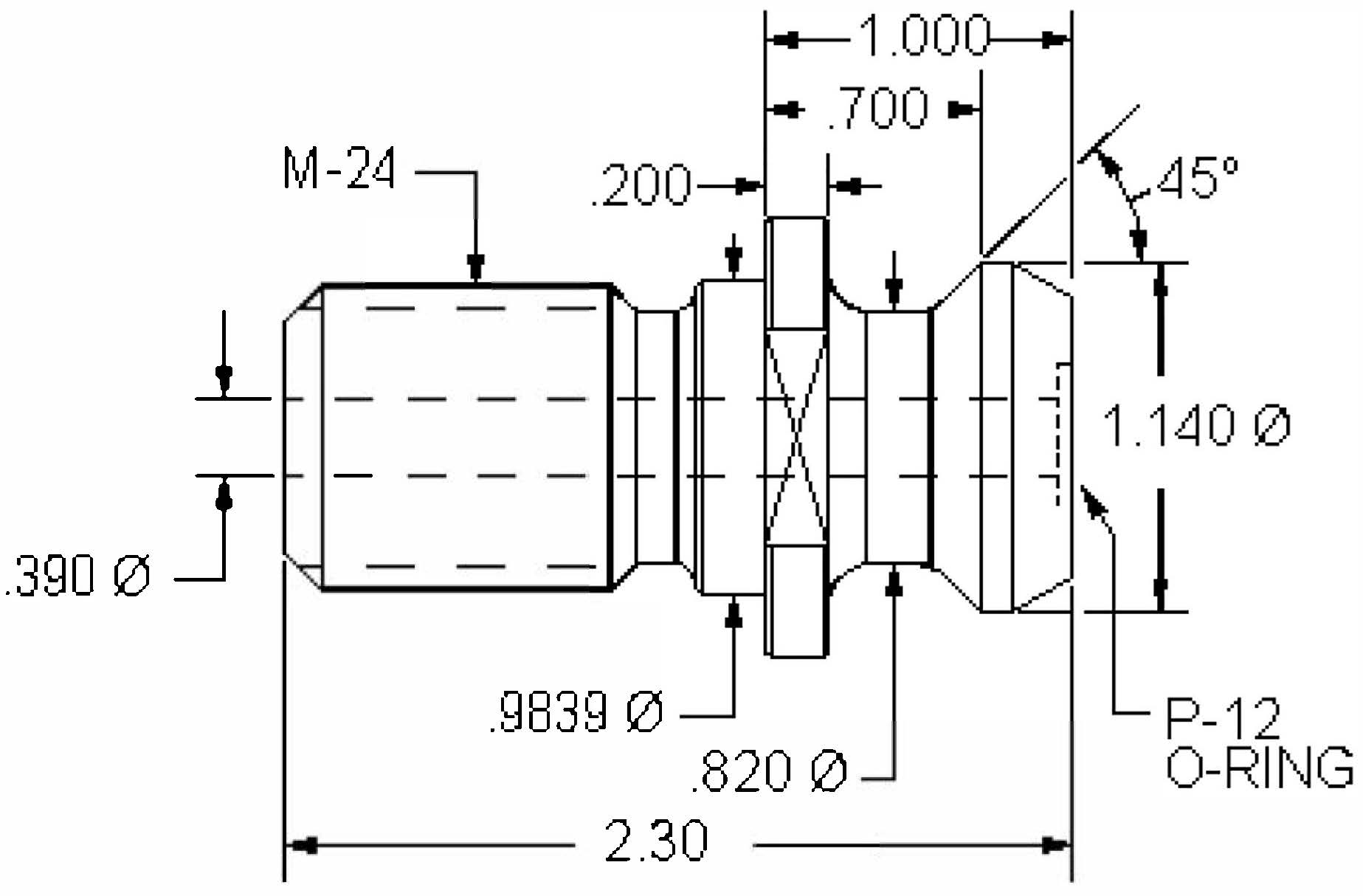

JM31246A
OBSOLETE-Standard retention knob, BT50, M24X3; 45°, Coolant through; O-Rings included-See JM31246AHT
| Category: | Retention Knobs |
| Thread Size: | M24X3.0 |
| Angle: | 45 |
| Knob Diameter: | 1.140 |
| L1 Length: | 0.7000 |
| L2 Length: | 1.000 |
| Flange Thickness: | 0.200 |
| Hole Diameter: | 0.390 |
| Knob Side O-Ring: | P-12 |
| Neck Diameter: | 0.820 |
| Pilot Diameter: | 1.026 |
| Shoulder Diameter: | 1.400 |
| Wrench Flat Diameter: | 1.187 |
| Socket Part #: | RKW50M |
| Number: | JM31246A |
| Alternate Part: | JM31246AHT |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
| Retention Knob Supply: | RK312-46A |
| Kenn 2: | 2878480 |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
