JM31246HT

Home   ›   Shop   ›   JM31246HT

High Torque© retention knob, CAT50, 1"-8, 45°, Coolant through; O-Rings included

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

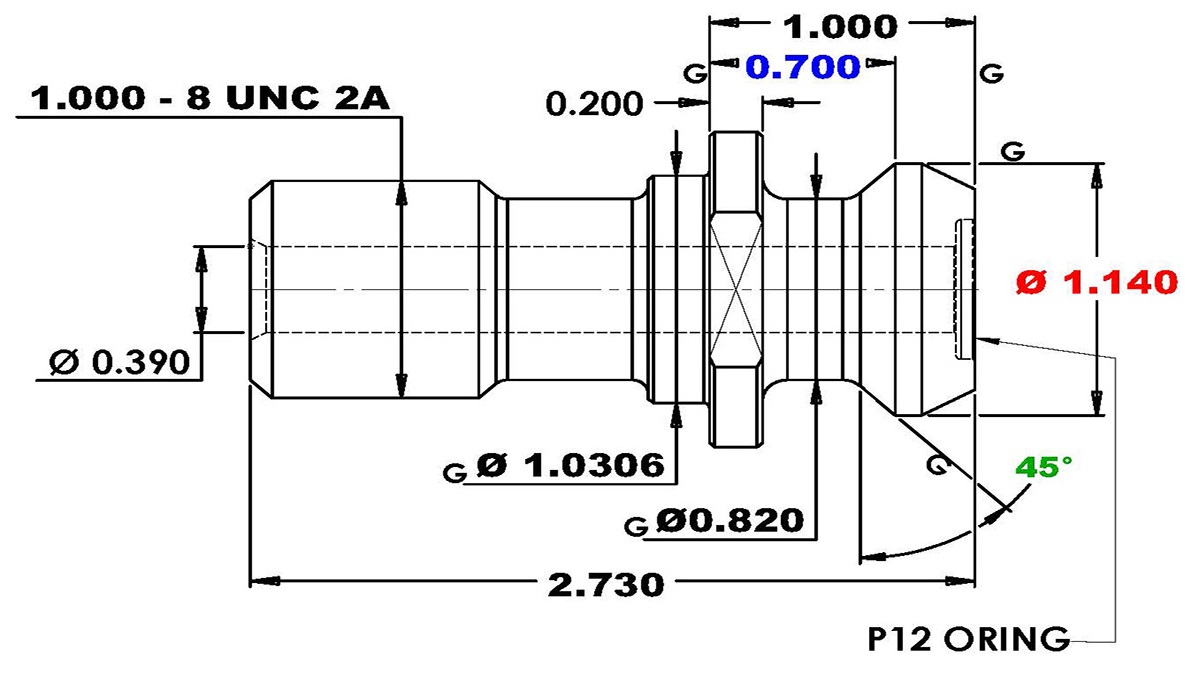

Thread Size: 1.00-8
Angle: 45
Knob Diameter: 1.140
L1 Length: 0.7000
L2 Length: 1.000
Flange Thickness: 0.200
Hole Diameter: 0.390
Knob Side O-Ring: P-12
Neck Diameter: 0.820
Pilot Diameter: 1.026
Shoulder Diameter: 1.430
Wrench Flat Diameter: 1.245
Socket Part #: RKW50
Number: JM31246HT
Solid Version: JM11146HT
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Kenn 2: 2878480
New MSC: 68951987
For Machines (see disclaimer)*: Mazak

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
