Home   ›   Shop   ›   JM31251AHTHS

High Torque© High Strength (HTHS) retention knob, CAT 50, 1"-8; 45°, Coolant through, O-Rings included; Made from 9310H steel, 40% stronger; Replaces JM31251A

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

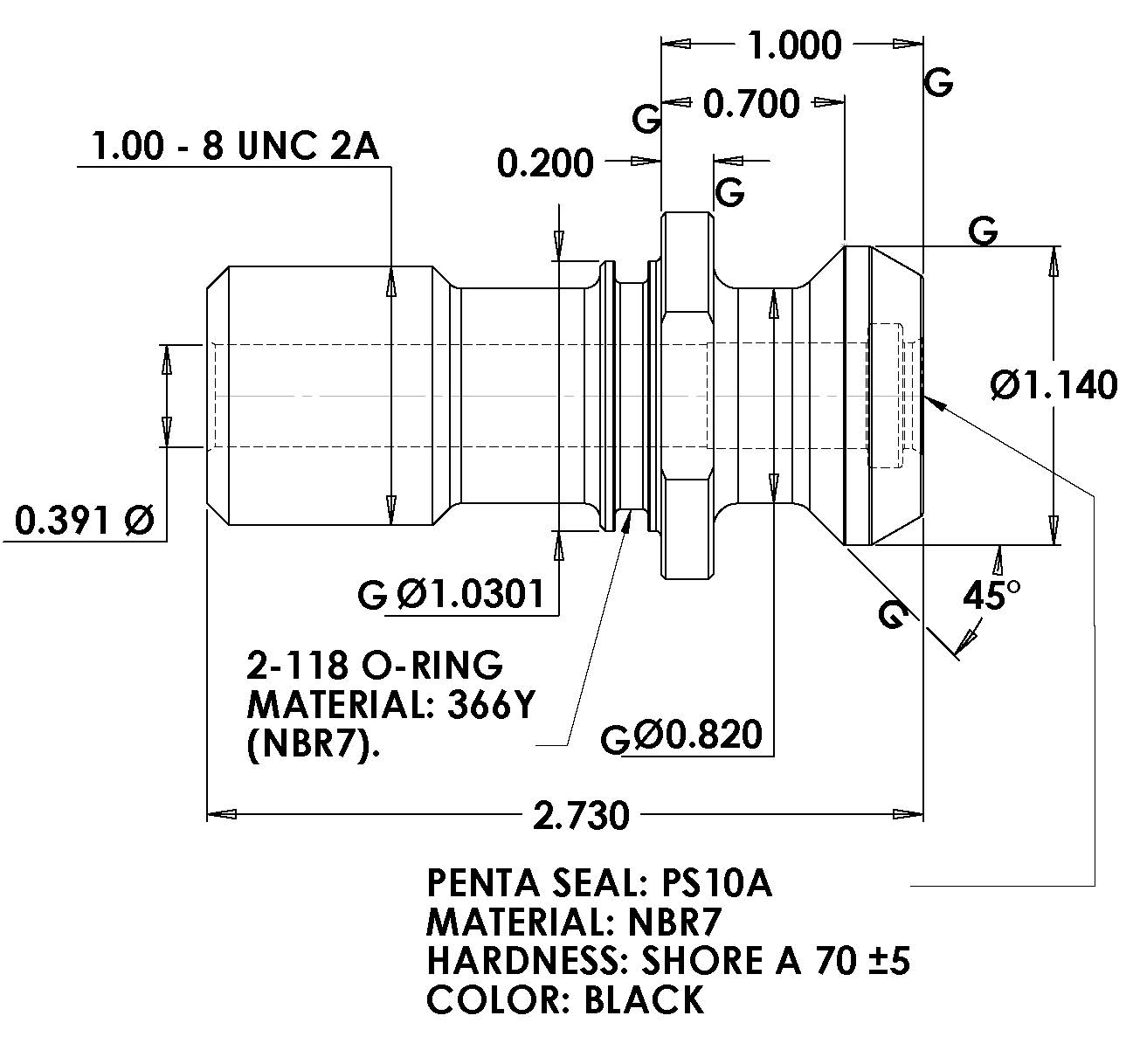

Thread Size: 1.00-8
Angle: 45
Knob Diameter: 1.140
L1 Length: 0.7000
L2 Length: 1.000
Flange Thickness: 0.200
Hole Diameter: 0.390
Knob Side O-Ring: PS-10A
Neck Diameter: 0.820
Pilot Diameter: 1.030
Shoulder Diameter: 1.400
Wrench Flat Diameter: 1.183
Socket Part #: RKW50M
Number: JM31251AHTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
