OBSOLETE-Standard retention knob, CAT40, 5/8-11, 45°; Coolant through-See JM31514HS, JM31514HT, JM31514HTHS

Category: Retention Knobs

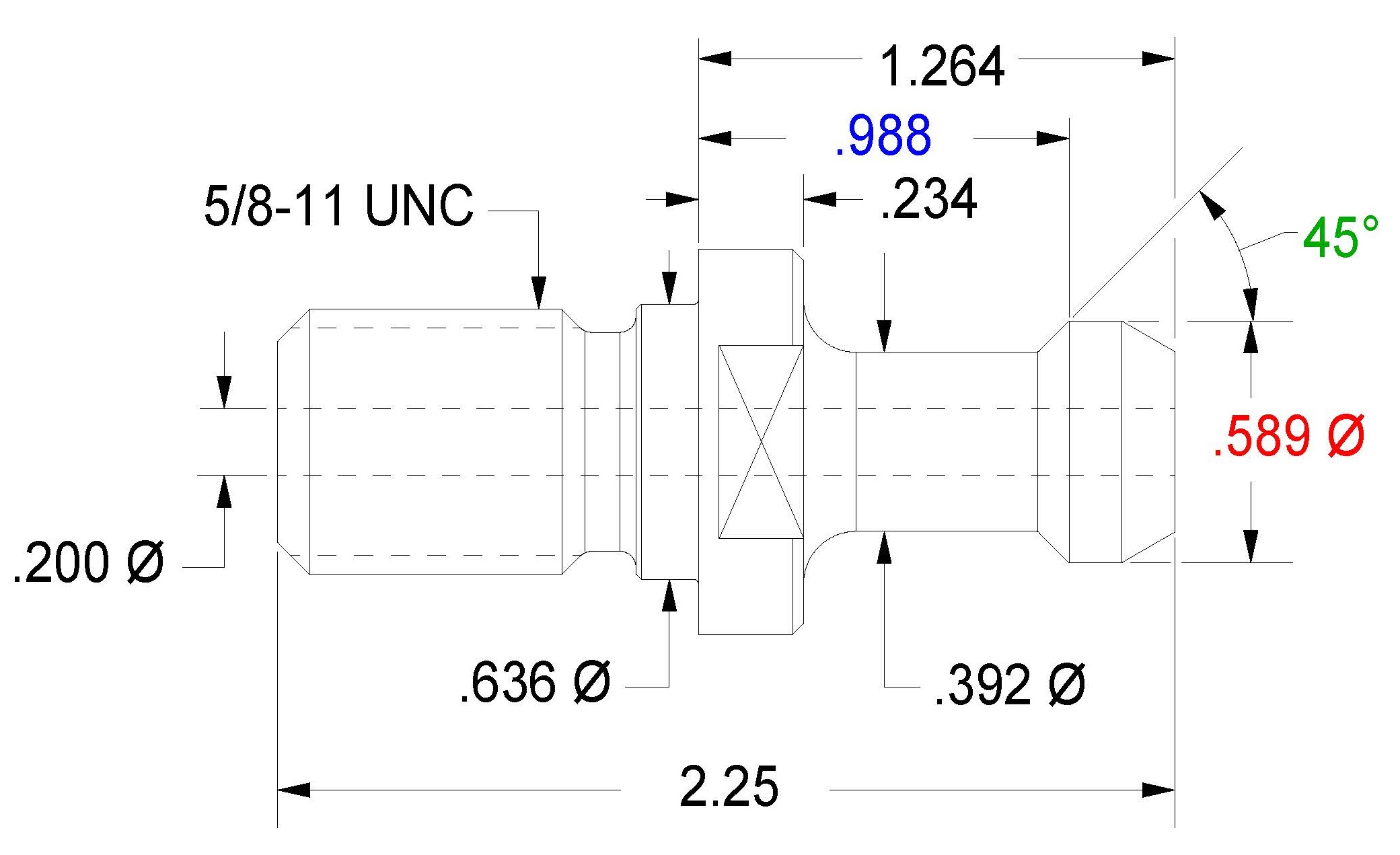

Thread Size: .625-11
Angle: 45
Knob Diameter: 0.589
L1 Length: 0.9880
L2 Length: 1.264
Flange Thickness: 0.234
Hole Diameter: 0.200
Neck Diameter: 0.392
Pilot Diameter: 0.636
Shoulder Diameter: 0.938
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: JM31514
Solid Version: JM32114HS(4), JM32114HTHS(4), JM31114HS, JM31114HTHS -(4) Note difference in flange thickness size
Alternate Part: JM32114CHS(4), JM32114CHT(4), JM32114CHTHS(4), JM31514HS, JM31514HT, JM31514HTHS - (4) Note difference in flange thickness size
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Retention Knob Supply: RK315-14
Seco: 1649
Big Kaiser: P40T-1CH
Command: RS4E-0221-C
Davies: PSC-532X45
Lyndex: C40S-4500H
MSC: 1401769
Parlec: 4009TRKC
For Machines (see disclaimer)*: Haas, Johnford, Neway

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
