JM31514HT

Home   ›   Shop   ›   JM31514HT

High Torque© (HT) retention knob, CAT40; 5/8"-11, 45°, Coolant through

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

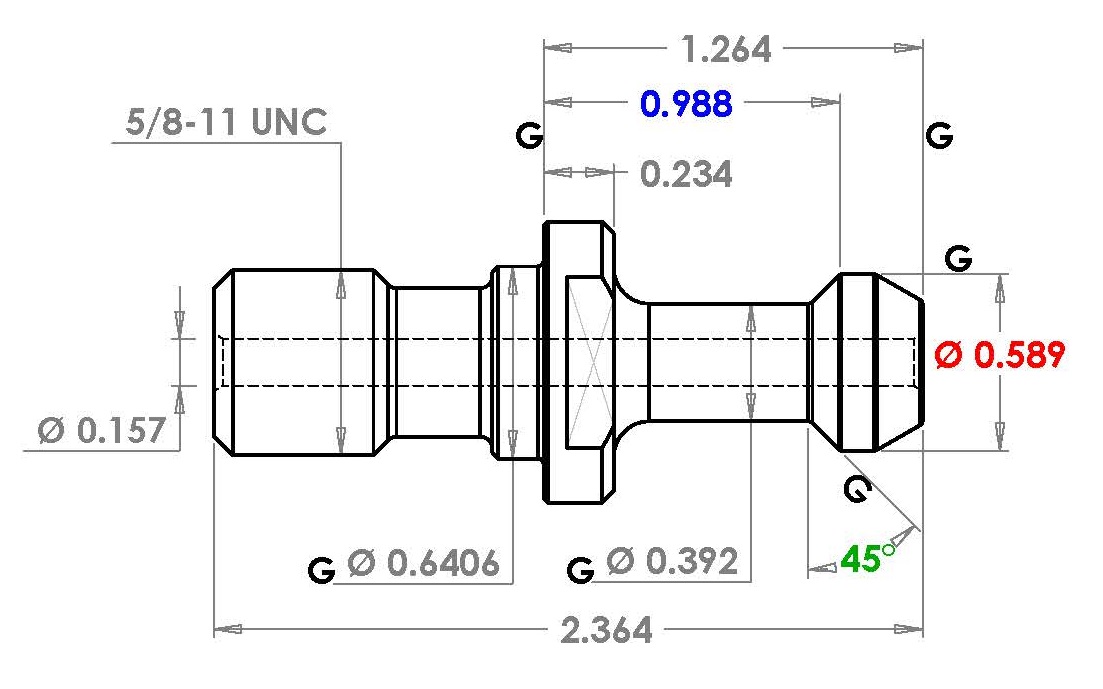

Thread Size: .625-11
Angle: 45
Knob Diameter: 0.589
L1 Length: 0.9880
L2 Length: 1.264
Flange Thickness: 0.234
Hole Diameter: 0.200
Neck Diameter: 0.392
Pilot Diameter: 0.636
Shoulder Diameter: 0.938
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: JM31514HT
Solid Version: JM32114HTHS(4), JM31114HTHS -(4) Note difference in flange thickness size
Alternate Part: JM32114CHT(4), JM32114CHTHS(4), JM31514HTHS- (4) Note difference in flange thickness size
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
New MSC: 68952175
For Machines (see disclaimer)*: Haas, Johnford, Neway

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.

WARNING: The steel alloy used in this product contains chromium and nickel. This product can expose you to chemicals including chromium and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
