JM31514HTHS

Home   ›   Shop   ›   JM31514HTHS

High Torque© High Strength (HTHS) retention knob, CAT 40, 5/8"-11; 45°, Coolant through, Made from 9310H steel, 40% stronger

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

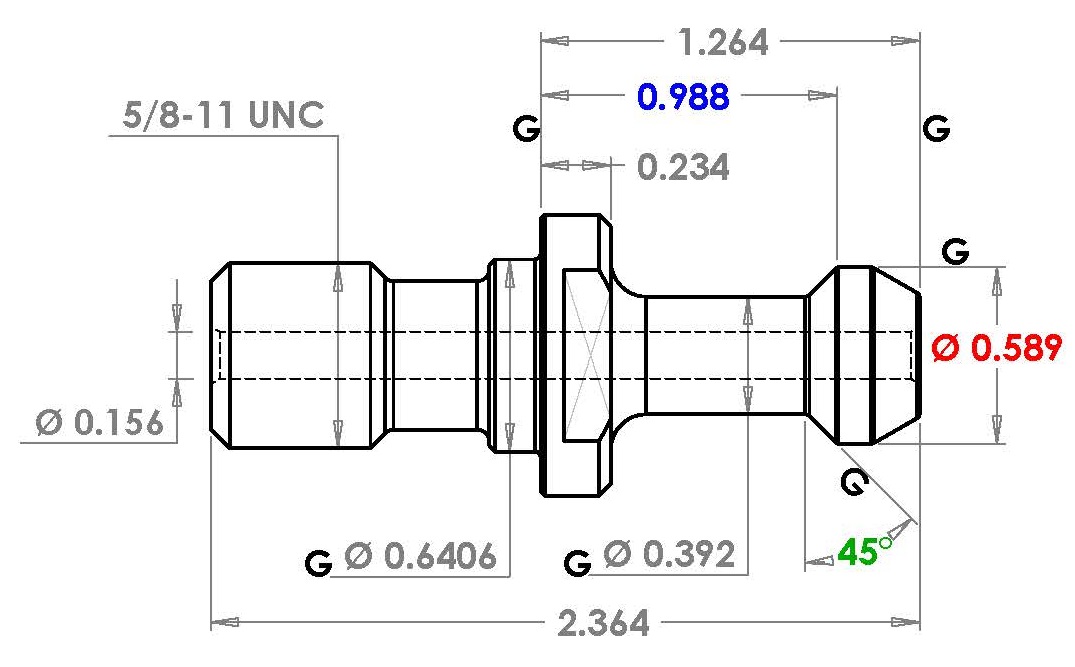

Thread Size: .625-11
Angle: 45
Knob Diameter: 0.589
L1 Length: 0.9880
L2 Length: 1.264
Flange Thickness: 0.234
Hole Diameter: 0.200
Neck Diameter: 0.392
Pilot Diameter: 0.641
Shoulder Diameter: 0.938
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: JM31514HTHS
Solid Version: JM32114HTHS(4) JM31114HTHS- (4) Note difference in flange thickness size
Alternate Part: JM32114CHT(4), JM32114CHTHS(4), JM31514HT- (4) Note difference in flange thickness size
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Haas, Johnford, Neway

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
