JM31517HTHS

Home   ›   Shop   ›   JM31517HTHS

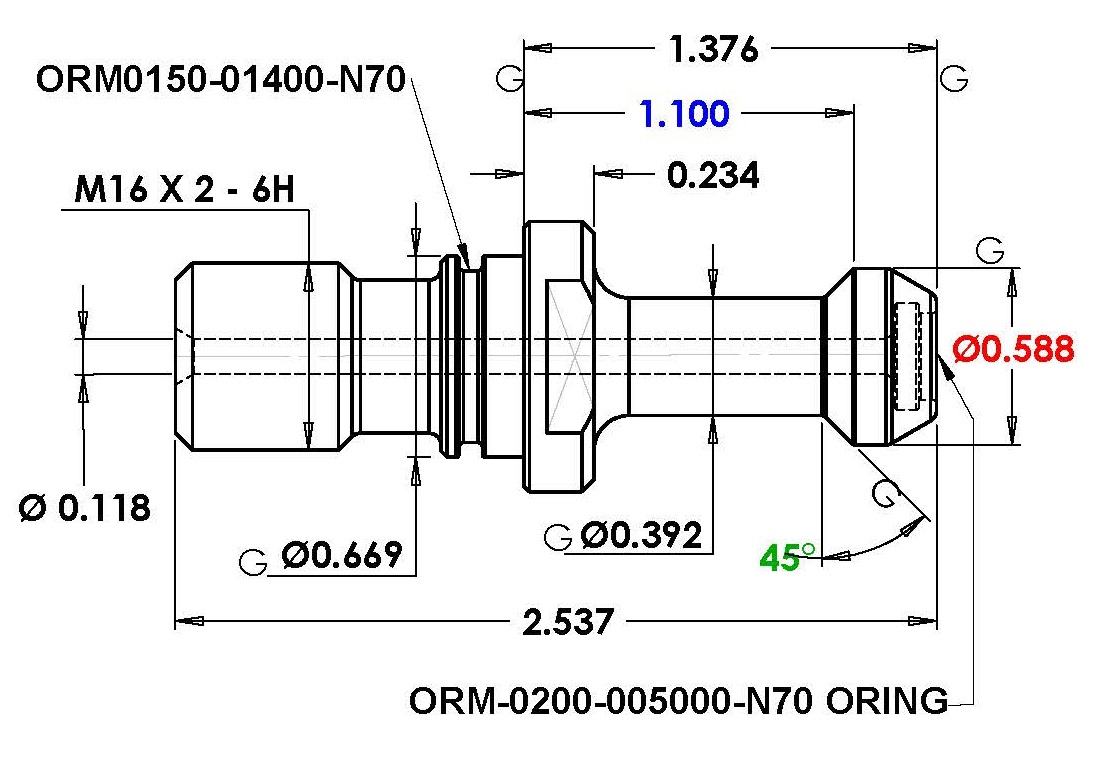

High Torque© High Strength (HTHS) retention knob, BT40, M16X2; 45°, Coolant through, Made from 9310H steel, 40% stronger; O-Rings included.

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: M16X2.0
Angle: 60
Knob Diameter: 0.589
L1 Length: 1.1000
L2 Length: 1.376
Flange Thickness: 0.234
Hole Diameter: 0.118
Knob Side O-Ring: 005000-N70
Neck Diameter: 0.392
Pilot Diameter: 0.669
Shoulder Diameter: 0.938
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: JM31517HTHS
Thread Side O-Ring: 1400-N70
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.

WARNING: The steel alloy used in this product contains chromium and nickel. This product can expose you to chemicals including chromium and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
