JM31558HTHS
High Torque© High Strength (HTHS) retention knob, CAT 50, 1"-8; 15°, Coolant through, O-Rings included; Made from 9310H steel, 40% stronger;

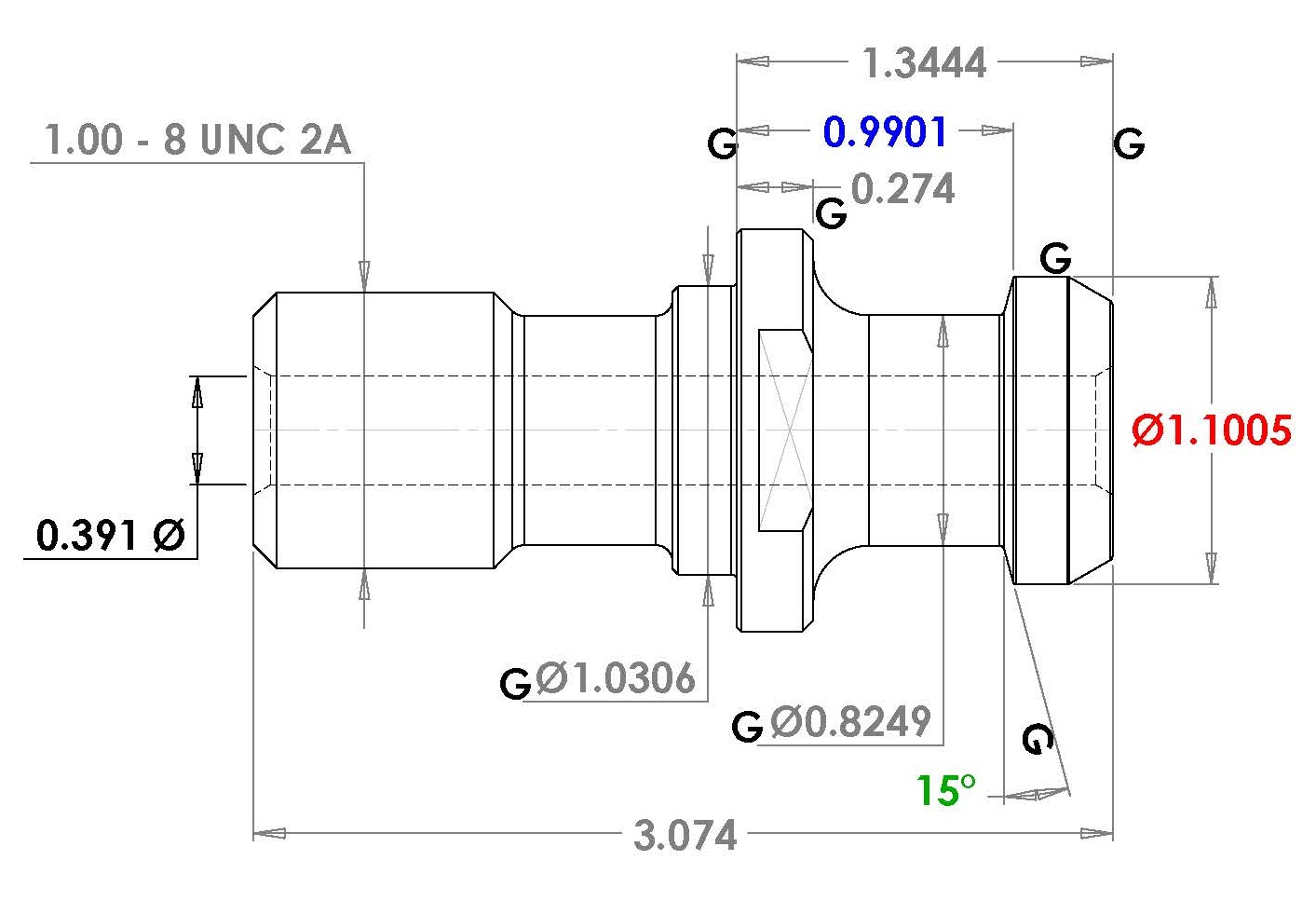

| Category: | Retention Knobs |
| Thread Size: | 1.00-8 |
| Angle: | 15 |
| Knob Diameter: | 1.101 |
| L1 Length: | 0.9901 |
| L2 Length: | 1.344 |
| Flange Thickness: | 0.274 |
| Hole Diameter: | 0.391 |
| Neck Diameter: | 0.825 |
| Pilot Diameter: | 1.031 |
| Shoulder Diameter: | 1.438 |
| Wrench Flat Diameter: | 1.245 |
| Socket Part #: | RKW50 |
| Number: | JM31558HTHS |
| Solid Version: | JM51041(86) |
| Alternate Part: | JM31558HT |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
| For Machines (see disclaimer)*: | Matsuura |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
