JM31617HS

Home   ›   Shop   ›   JM31617HS

High Strength (HS) retention knob, CAT40, 5/8-11; 15°; Coolant through; Made from 9310H steel, 40% stronger; O-Rings included; replaces JM31617

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

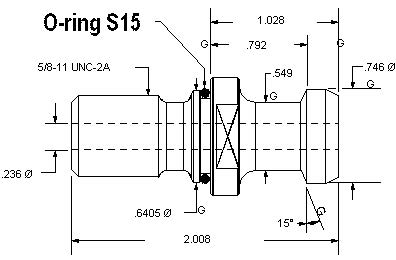

Thread Size: .625-11
Angle: 15
Knob Diameter: 0.746
L1 Length: 0.7920
L2 Length: 1.028
Flange Thickness: 0.274
Hole Diameter: 0.236
Neck Diameter: 0.549
Pilot Diameter: 0.641
Shoulder Diameter: 0.902
Wrench Flat Diameter: 0.746
Socket Part #: RKW40
Number: JM31617HS
Solid Version: JM31616HS, JM31616HTHS
Alternate Part: JM31617HS, JM31617HTHS
Thread Side O-Ring: S-15
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Kenn 2: 2878506
For Machines (see disclaimer)*: Doosan, Kitamura, Leblond Makino, Matsuura

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
