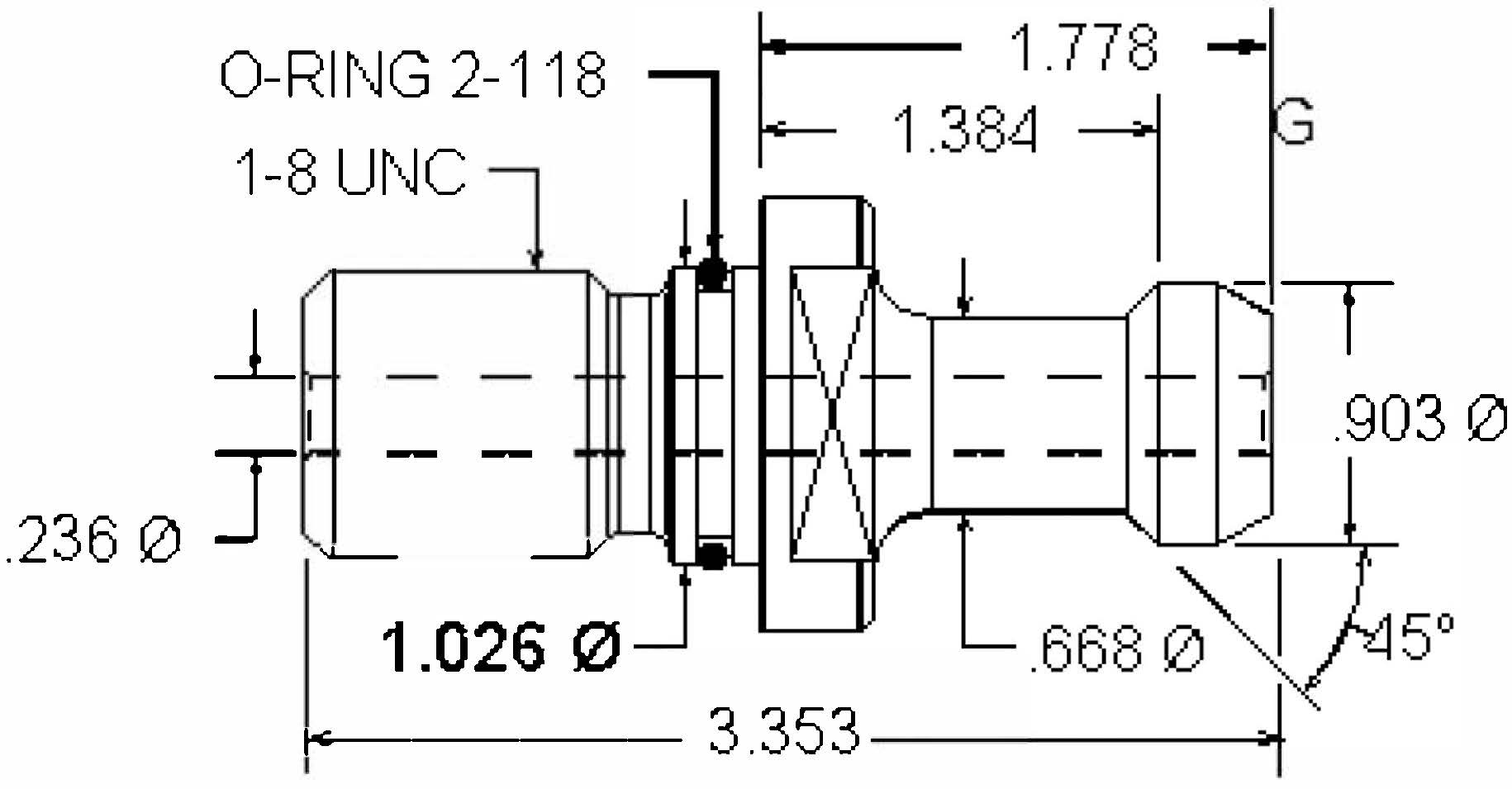

Standard retention knob, CAT50, 1"-8, 45°, Coolant through, O-Rings included

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: 1.00-8
Angle: 45
Knob Diameter: 0.903
L1 Length: 1.3840
L2 Length: 1.778
Flange Thickness: 0.392
Hole Diameter: 0.236
Neck Diameter: 0.668
Pilot Diameter: 1.026
Shoulder Diameter: 1.438
Wrench Flat Diameter: 1.245
Socket Part #: RKW50
Number: JM31647
Solid Version: JM31118, JM31118HT, JM31118HTHS
Alternate Part: JM31647HT, JM31647HTHS
Thread Side O-Ring: 2-118-N674-70
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Retention Knob Supply: RK316-47
Seco: 1691
Kenn 2: 2878534
Command: RS6E-0232-H
Davies: PSC-535X45
For Machines (see disclaimer)*: Makino

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
