JM32130HT

Home   ›   Shop   ›   JM32130HT

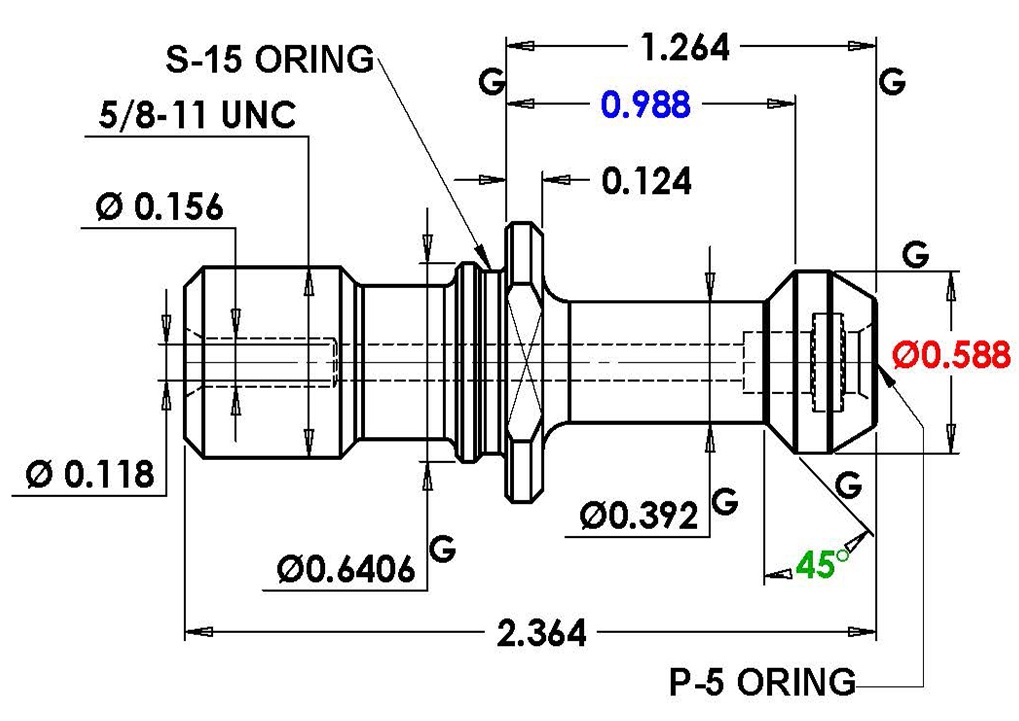

High Torque© (HT) retention knob, CAT40; 5/8"-11, 45°, Coolant through; O-Ring(s) included

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: .625-11
Angle: 45
Knob Diameter: 0.588
L1 Length: 0.9880
L2 Length: 1.264
Flange Thickness: 0.124
Hole Diameter: 0.116
Knob Side O-Ring: ORM0190-00480NBR-70
Neck Diameter: 0.392
Pilot Diameter: 0.641
Shoulder Diameter: 0.903
Wrench Flat Diameter: 0.743
Socket Part #: RKW40
Number: JM32130HT
Solid Version: JM32114HTHS, JM31114HTHS(4) - (4) Note difference in flange thickness size
Thread Side O-Ring: S-15
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Kenn 2: 2878503
For Machines (see disclaimer)*: Hyundai-Kia

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
