JM32450HT

Home   ›   Shop   ›   JM32450HT

High Torque© (HT) retention knob, CAT50, 1"-8, 90°, Coolant through, O-Rings included; Replaces JM32450

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

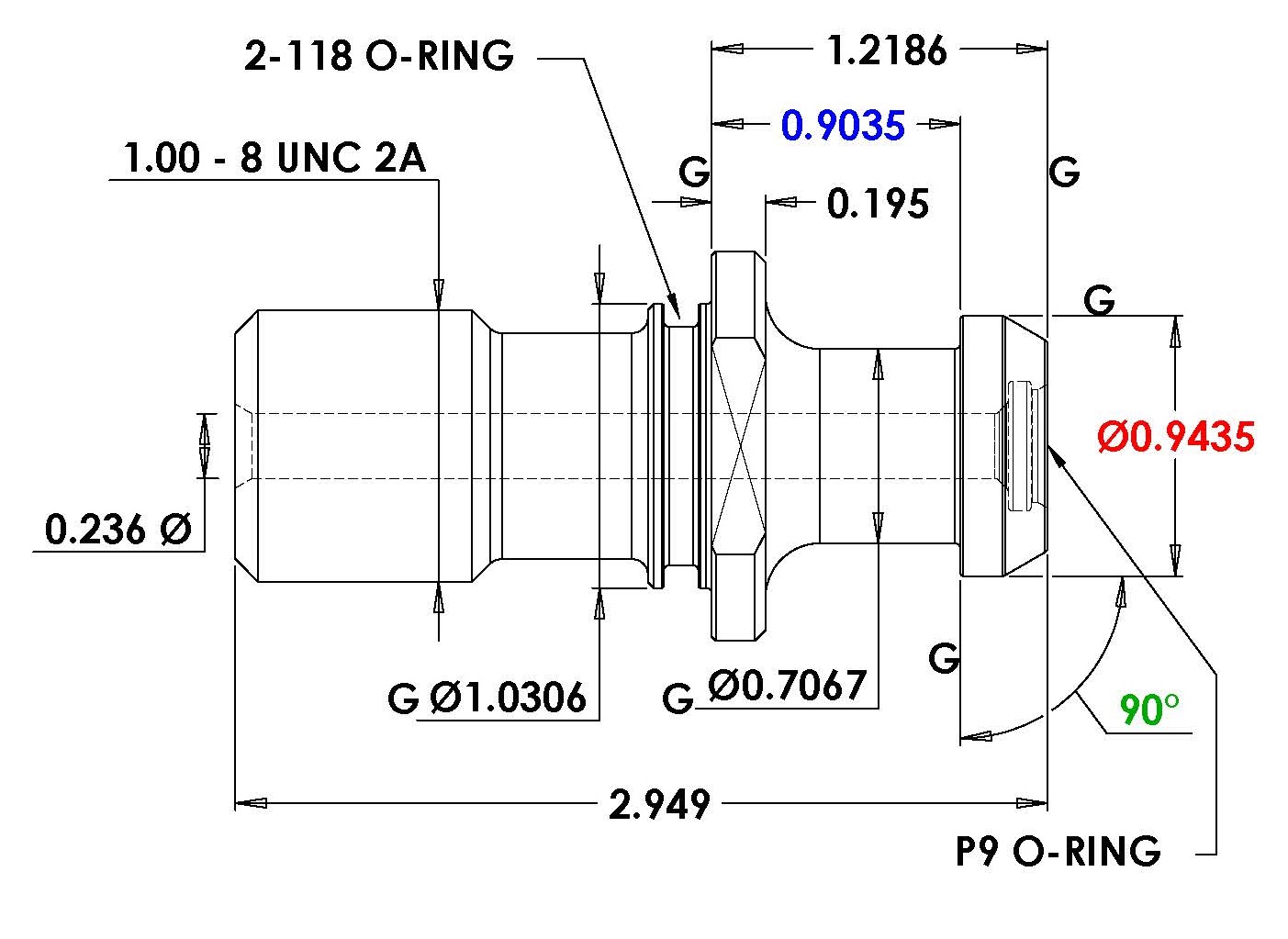

Thread Size: 1.00-8
Angle: 90
Knob Diameter: 0.944
L1 Length: 0.9035
L2 Length: 1.219
Flange Thickness: 0.195
Hole Diameter: 0.236
Knob Side O-Ring: P-9
Neck Diameter: 0.707
Pilot Diameter: 1.031
Shoulder Diameter: 1.415
Wrench Flat Diameter: 1.177
Socket Part #: RKW50M
Number: JM32450HT
Alternate Part: JM32450HTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Mitsui-Seiki

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
