OBSOLETE-Standard retention knob, BT30, M12X1.75, 60°, Solid

Category: Retention Knobs

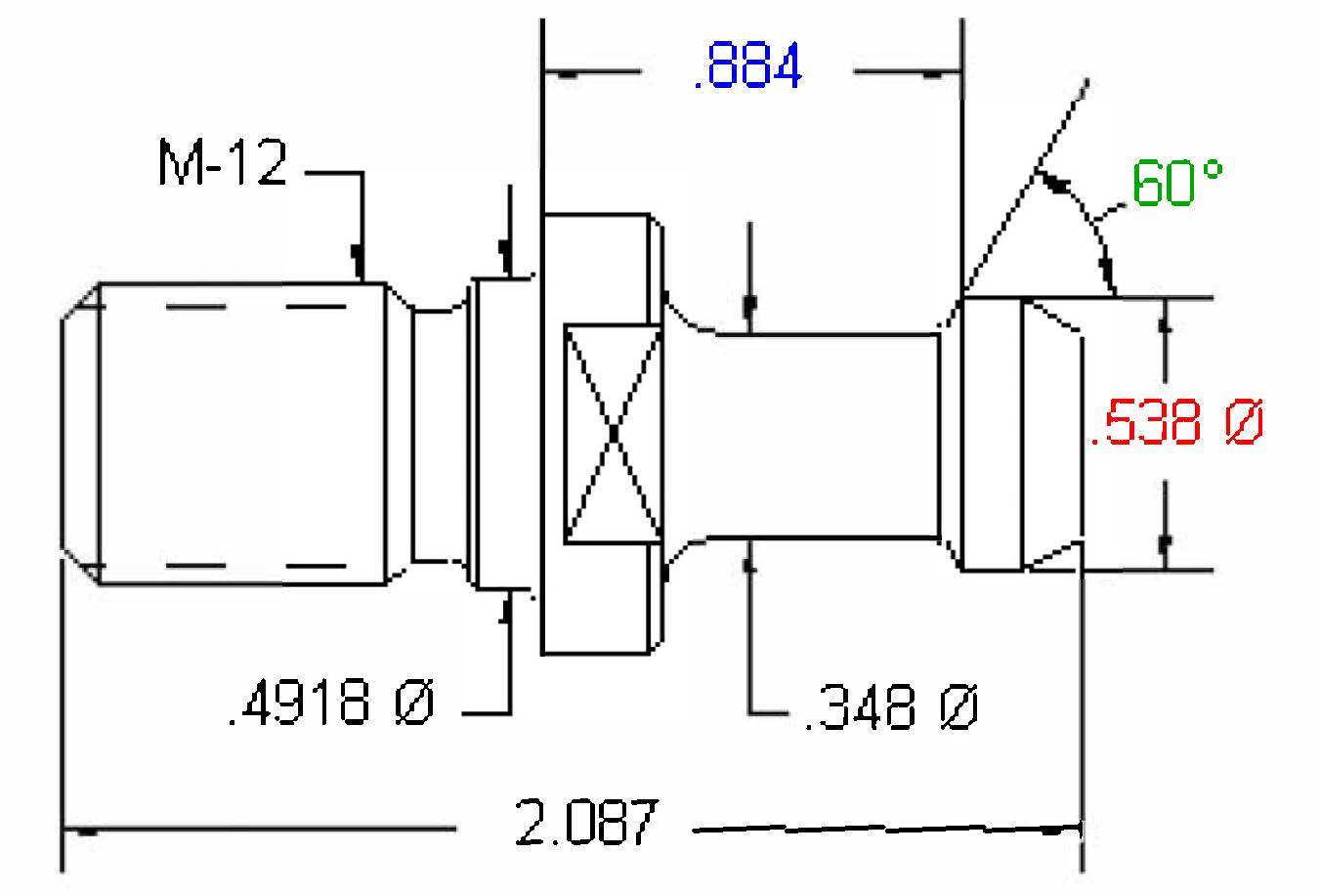

Thread Size: M12X1.75
Angle: 60
Knob Diameter: 0.538
L1 Length: 0.8840
L2 Length: 1.100
Flange Thickness: 0.197
Hole Diameter: -
Neck Diameter: 0.348
Pilot Diameter: 0.492
Shoulder Diameter: 0.784
Wrench Flat Diameter: 0.667
Socket Part #: N/A
Number: JM32614
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Retention Knob Supply: RK326-14
Seco: 6112
Kenn 2: 2878517
Command: RB3M-0102
Lyndex: B35-6000
Parlec: 3504TRK
For Machines (see disclaimer)*: Kitamura, Matsuura

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
