High Torque© High Strength (HTHS) retention knob, BT30, M12X1.75, Coolant through; Made from 9310H steel, 40% stronger; Replaces JM32621, JM32621HT

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

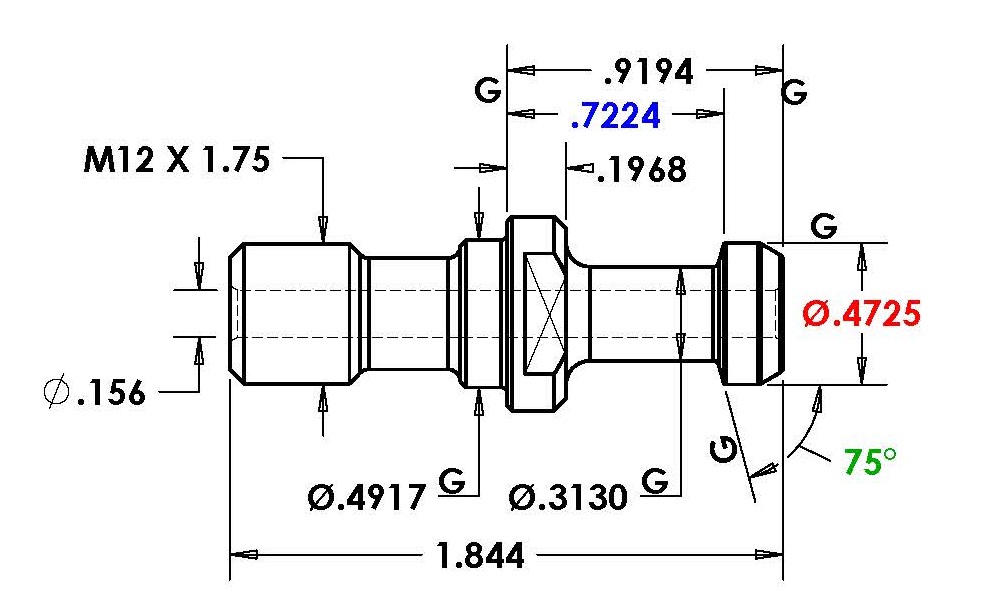

Thread Size: M12X1.75
Angle: 15
Knob Diameter: 0.473
L1 Length: 0.7224
L2 Length: 0.919
Flange Thickness: 0.197
Hole Diameter: 0.156
Neck Diameter: 0.313
Pilot Diameter: 0.492
Shoulder Diameter: 0.646
Wrench Flat Diameter: 0.505
Socket Part #: N/A
Number: JM32621HTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Kitamura, Matsuura

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
