JM32750M

Home   ›   Shop   ›   JM32750M

Standard retention knob, BT40, M16x2, 45°; Coolant through, O-Rings included

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

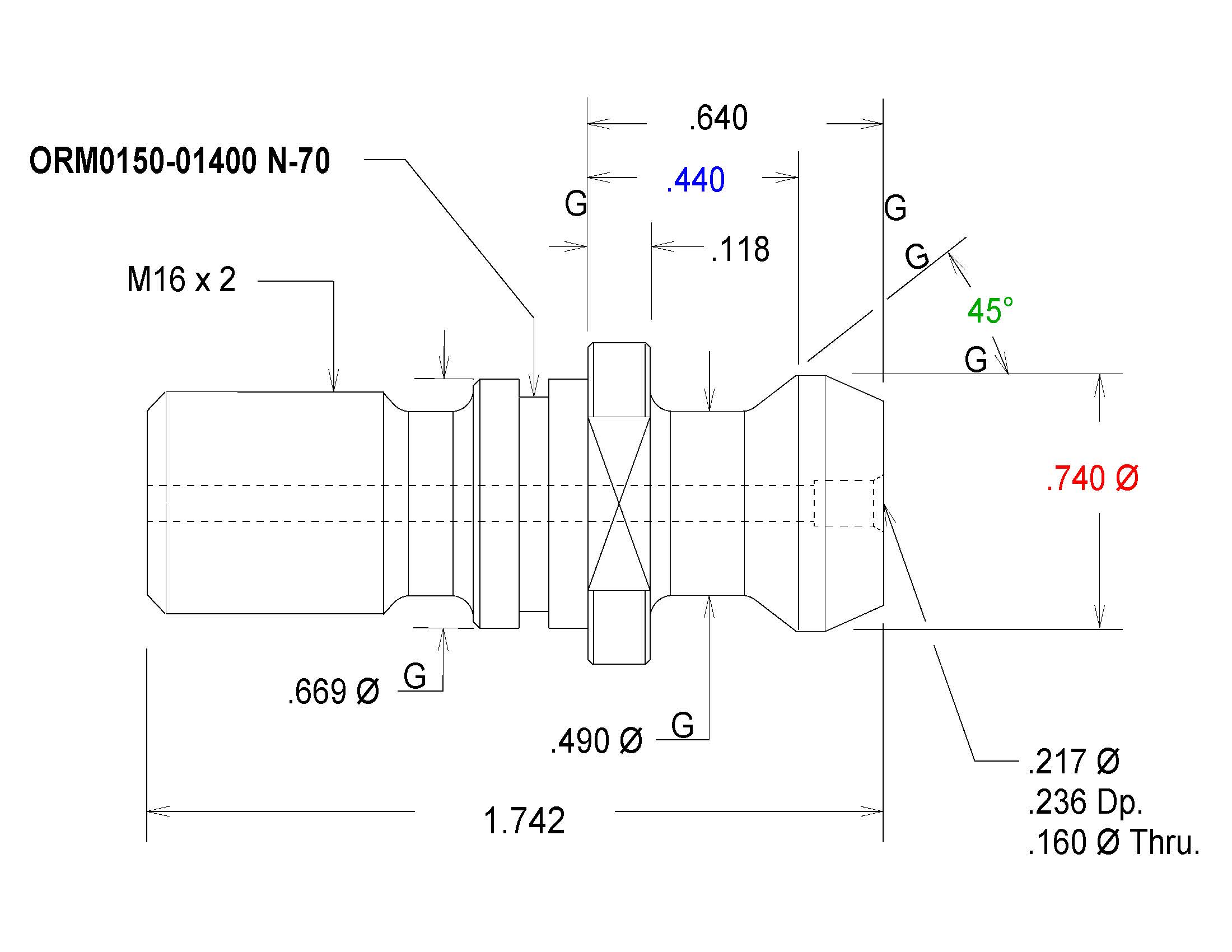

Thread Size: M16X2.0
Angle: 45
Knob Diameter: 0.740
L1 Length: 0.4400
L2 Length: 0.640
Flange Thickness: 0.118
Hole Diameter: 0.160
Neck Diameter: 0.490
Pilot Diameter: 0.669
Shoulder Diameter: 0.862
Wrench Flat Diameter: 0.765
Socket Part #: RKW40
Number: JM32750M
Thread Side O-Ring: ORM0150-01400-N70
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Okuma

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
