JM32760HTHS

Home   ›   Shop   ›   JM32760HTHS

High Torque© (HT) retention knob, CAT40; 5/8"-11, 45°, Coolant through; O-Ring(s) included; replaces JM32760

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

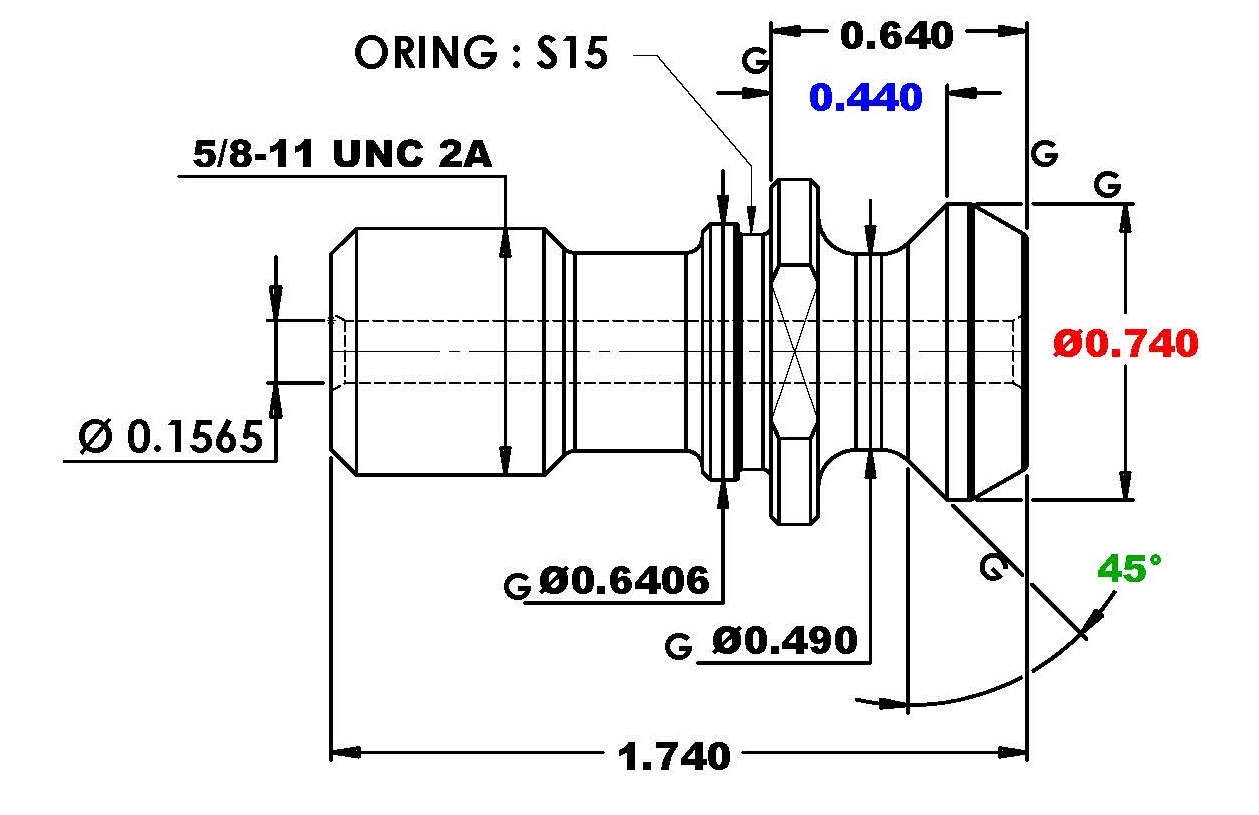

Thread Size: .625-11
Angle: 45
Knob Diameter: 0.740
L1 Length: 0.4400
L2 Length: 0.640
Flange Thickness: 0.120
Hole Diameter: 0.156
Knob Side O-Ring: .217X.236
Neck Diameter: 0.490
Pilot Diameter: 0.641
Shoulder Diameter: 0.862
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: JM32760HTHS
Solid Version: JM31226-HHT, JM31226-HHTHS, JM11123HTHS
Alternate Part: JM32760HT
Thread Side O-Ring: S-15
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Okuma

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
