JM34230HT

Home   ›   Shop   ›   JM34230HT

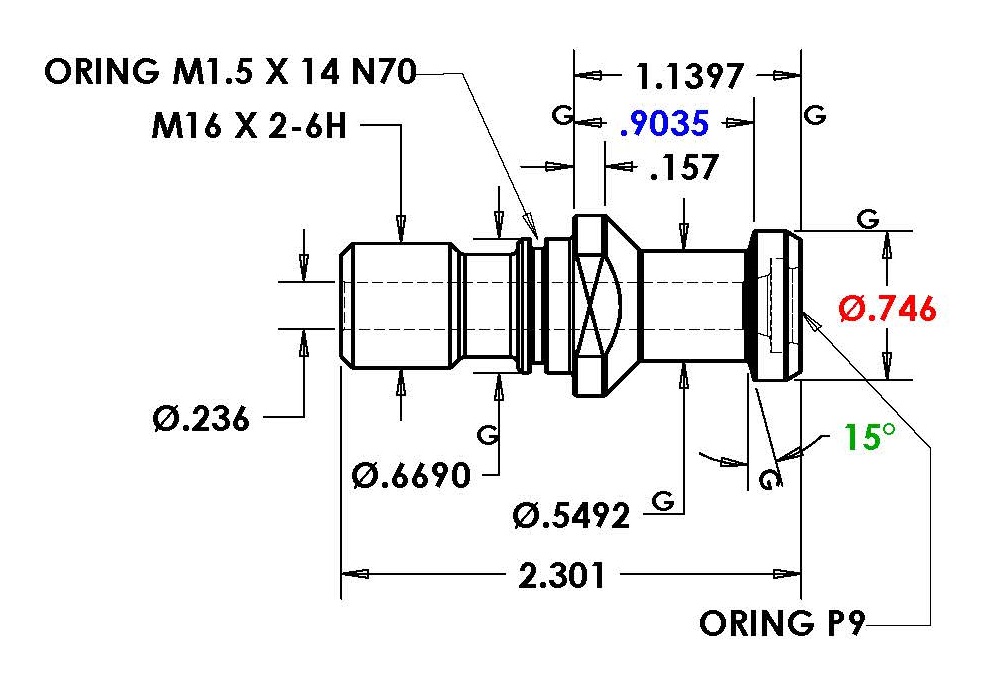

OBSOLETE-High Torque© (HT) retention knob, BT40, M16x2, 15°; Coolant through, O-Rings included-See JM34230HTHS

Category: Retention Knobs
Thread Size: M16X2.0
Angle: 15
Knob Diameter: 0.746
L1 Length: 0.9040
L2 Length: 1.140
Flange Thickness: 0.157
Hole Diameter: 0.236
Knob Side O-Ring: P-9
Neck Diameter: 0.549
Pilot Diameter: 0.669
Shoulder Diameter: 0.902
Wrench Flat Diameter: 0.745
Socket Part #: RKW40
Number: JM34230HT
Alternate Part: JM34230HTHS
Thread Side O-Ring: ORM0150-01400-N70
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Mori Seiki

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
