JM34275HTHS

Home   ›   Shop   ›   JM34275HTHS

High Torque© High Strength (HTHS) retention knob, CAT 50, 1"-8; 90°, Coolant through; Made from 9310H steel, 40% stronger; replaces JM34275HTHS

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

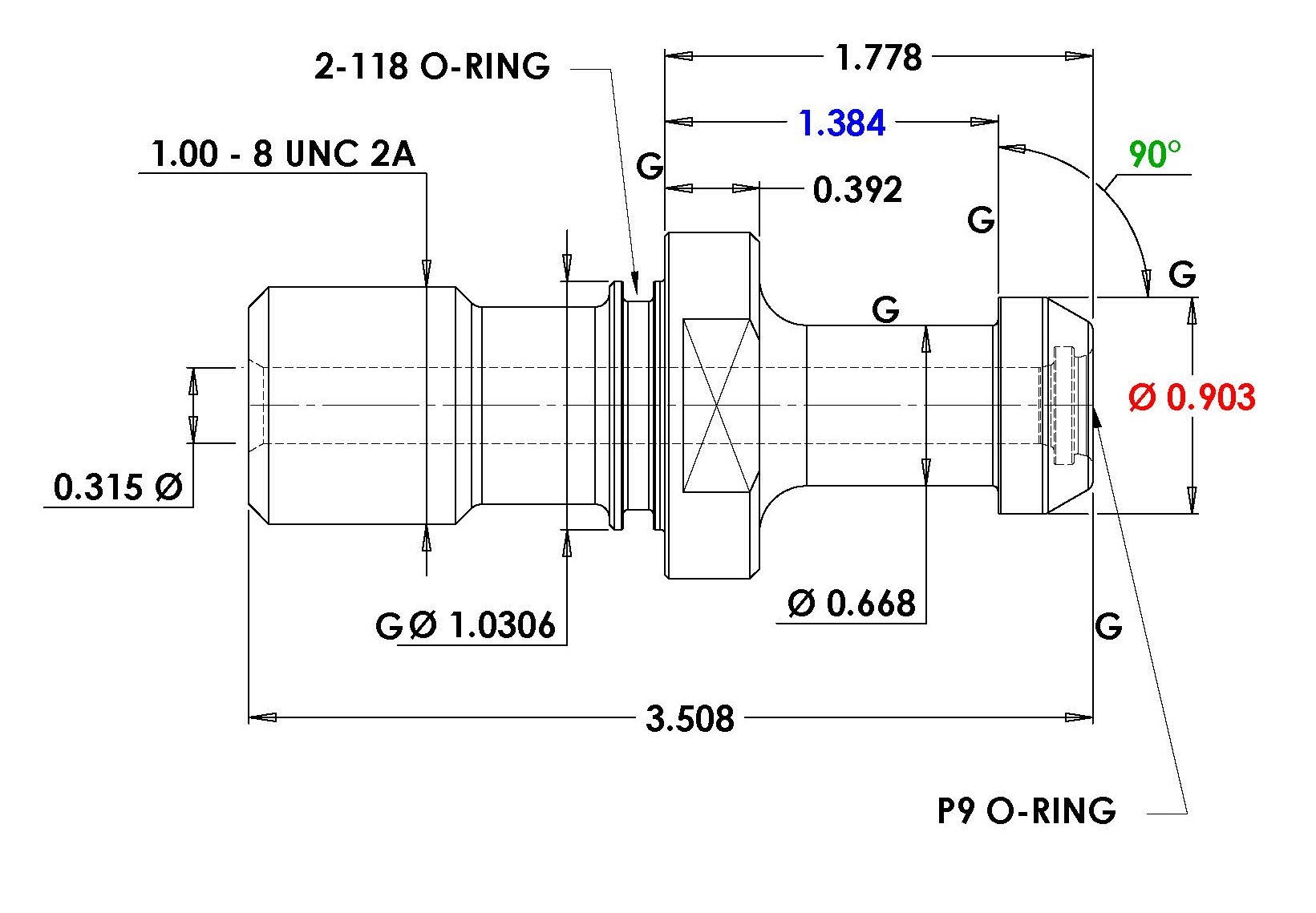

Thread Size: 1.00-8
Angle: 90
Knob Diameter: 0.903
L1 Length: 1.3840
L2 Length: 1.778
Flange Thickness: 0.392
Hole Diameter: 0.315
Knob Side O-Ring: P-9
Neck Diameter: 0.668
Pilot Diameter: 1.031
Shoulder Diameter: 1.438
Wrench Flat Diameter: 1.245
Socket Part #: RKW50
Number: JM34275HTHS
Thread Side O-Ring: 2-118
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Mori Seiki

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.

WARNING: The steel alloy used in this product contains chromium and nickel. This product can expose you to chemicals including chromium and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
