JM34275MHTHS

Home   ›   Shop   ›   JM34275MHTHS

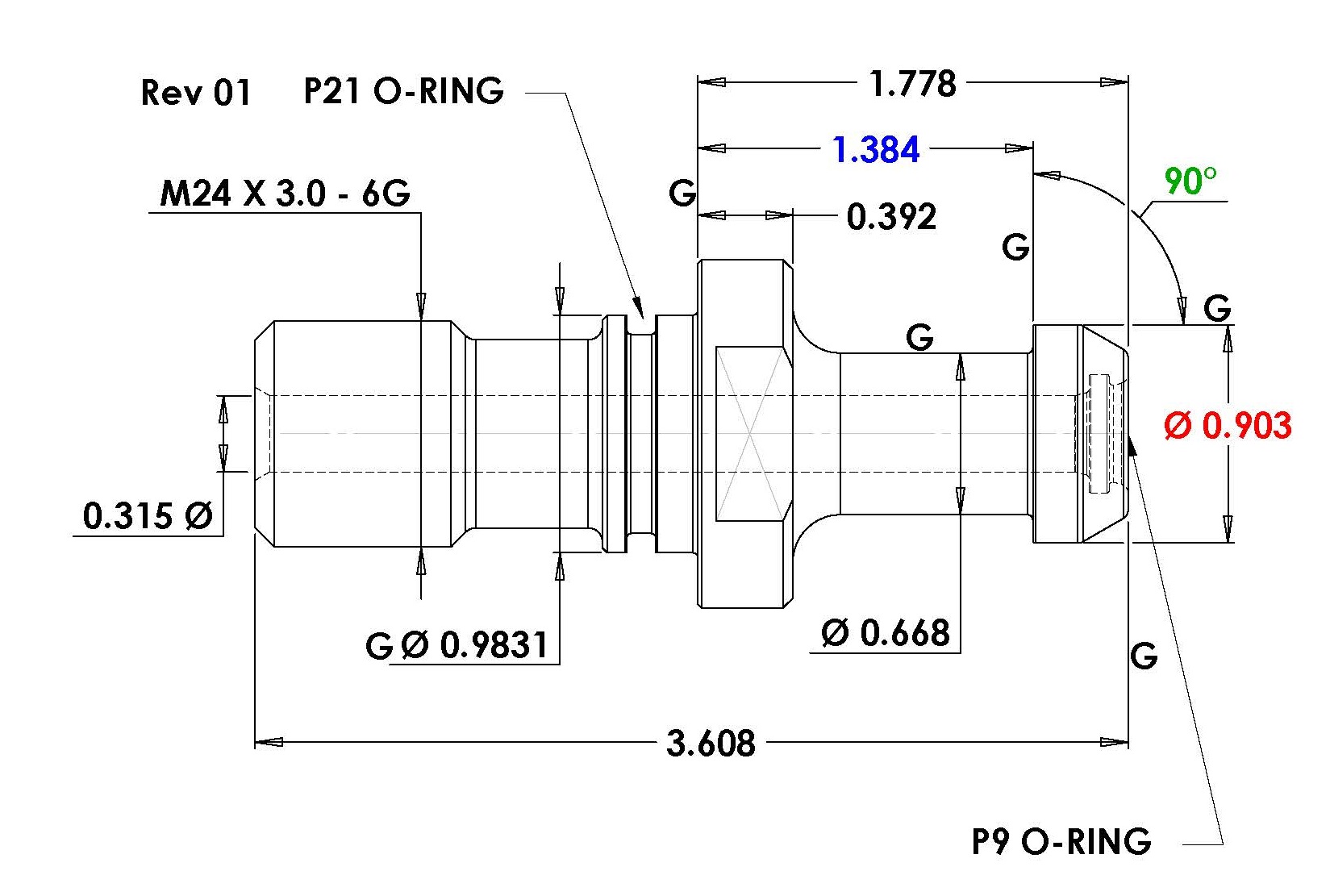

High Torque© High Strength (HTHS) retention knob, CAT 50, M24X3; 90°, Coolant through; Made from 9310H steel, 40% stronger

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: M24X3.0
Angle: 90
Knob Diameter: 0.903
L1 Length: 1.3840
L2 Length: 1.778
Flange Thickness: 0.392
Hole Diameter: 0.315
Knob Side O-Ring: P-9
Neck Diameter: 0.668
Pilot Diameter: 0.983
Shoulder Diameter: 1.438
Wrench Flat Diameter: 1.245
Socket Part #: RKW50
Number: JM34275MHTHS
Thread Side O-Ring: 2-118
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Mori Seiki

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
