JM35052HTHS

Home   ›   Shop   ›   JM35052HTHS

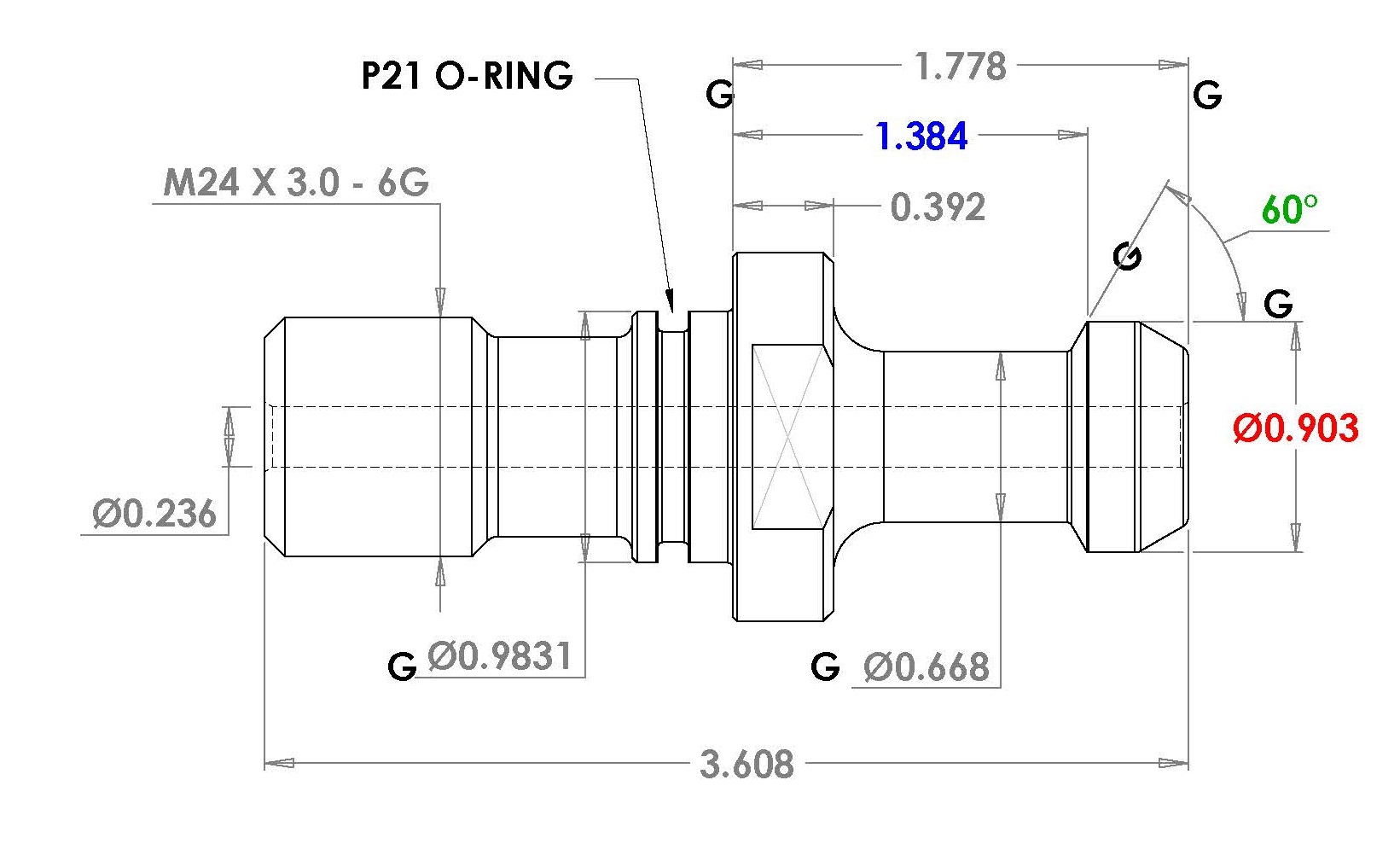

High Torque© High Strength (HTHS) retention knob, BT 50, M24x3; 60°, Coolant through, O-Rings included; Made from 9310H steel, 40% stronger; replaces JM35052

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: M24X3.0
Angle: 60
Knob Diameter: 0.903
L1 Length: 1.3840
L2 Length: 1.778
Flange Thickness: 0.392
Hole Diameter: 0.236
Neck Diameter: 0.668
Pilot Diameter: 0.983
Shoulder Diameter: 1.440
Wrench Flat Diameter: 1.246
Socket Part #: RKW50
Number: JM35052HTHS
Solid Version: JM35048A
Alternate Part: JM35052HTHS.261
Thread Side O-Ring: P21
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
