JM36760AHTHS

Home   ›   Shop   ›   JM36760AHTHS

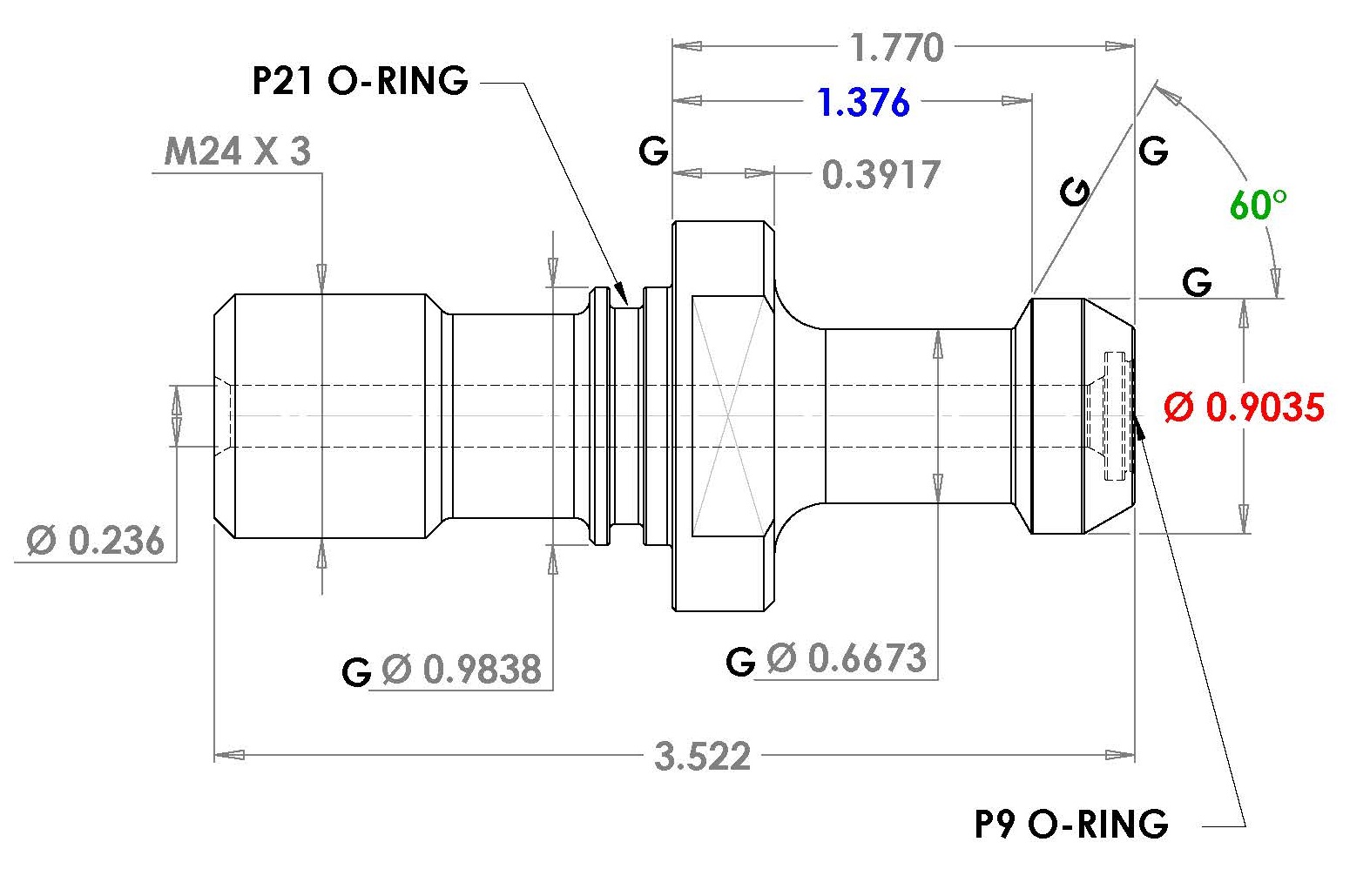

High Torque© High Strength (HTHS) retention knob, BT 50, M24x3; 60°, Coolant through, O-Rings included; Made from 9310H steel, 40% stronger

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: M24X3.0
Angle: 60
Knob Diameter: 0.903
L1 Length: 1.3760
L2 Length: 1.770
Flange Thickness: 0.392
Hole Diameter: 0.236
Knob Side O-Ring: P-9
Neck Diameter: 0.668
Pilot Diameter: 0.983
Shoulder Diameter: 1.492
Wrench Flat Diameter: 1.174
Socket Part #: RKW50M
Number: JM36760AHTHS
Thread Side O-Ring: P21
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Toyoda

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.

WARNING: The steel alloy used in this product contains chromium and nickel. This product can expose you to chemicals including chromium and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
