JM36760HTH13

Home   ›   Shop   ›   JM36760HTH13

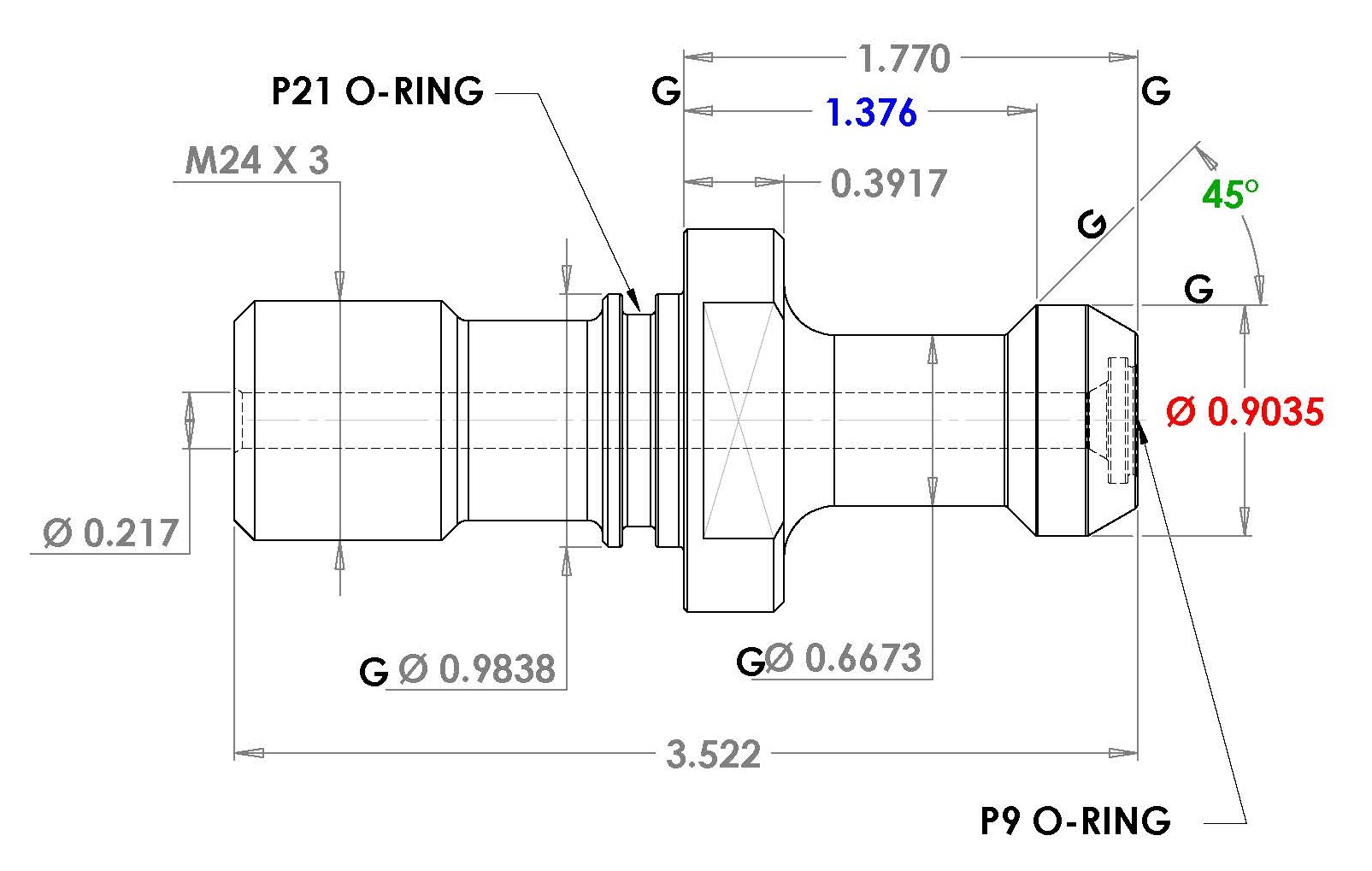

High Torque© High Strength (HTHS) retention knob, BT50, M24X3, 45°, Coolant through, O-Rings included; Made from H13 tool steel

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: M24X3.0
Angle: 45
Knob Diameter: 0.904
L1 Length: 1.3760
L2 Length: 1.770
Flange Thickness: 0.392
Hole Diameter: 0.217
Knob Side O-Ring: P-9
Neck Diameter: 0.667
Pilot Diameter: 0.984
Shoulder Diameter: 1.492
Wrench Flat Diameter: 1.174
Socket Part #: RKW50M
Number: JM36760HTH13
Thread Side O-Ring: P-21
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Mori Seiki

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.

WARNING: The steel alloy used in this product contains chromium and nickel. This product can expose you to chemicals including chromium and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
