High Torque© High Strength (HTHS) retention knob, BT30, M12X1.75; radius, Solid; Made from 9310H steel, 40% stronger

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

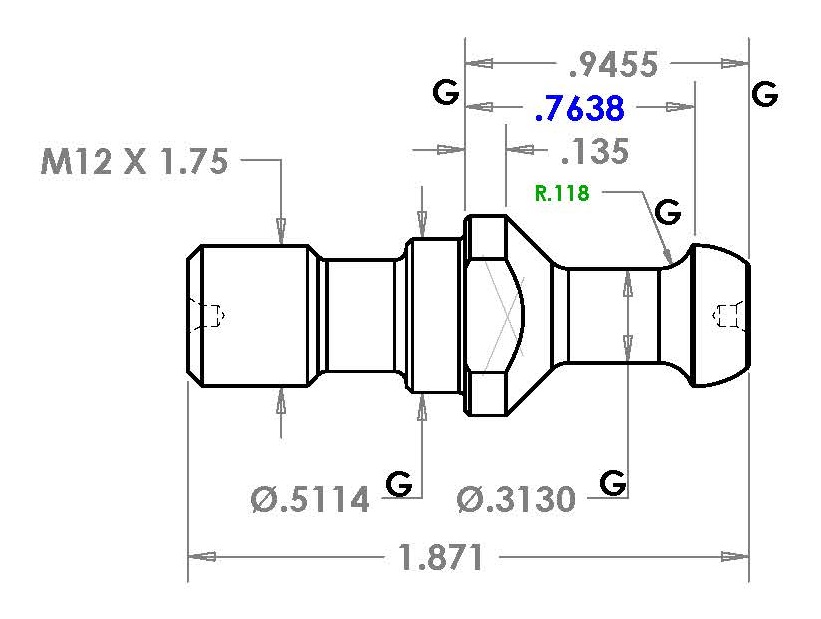

Thread Size: M12X1.75
Angle: R.118
Knob Diameter: -
L1 Length: 0.7638
L2 Length: 0.946
Flange Thickness: 0.135
Hole Diameter: -
Neck Diameter: 0.313
Pilot Diameter: 0.511
Shoulder Diameter: 0.665
Wrench Flat Diameter: 0.548
Socket Part #: RKW30D
Number: JM71101HTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
