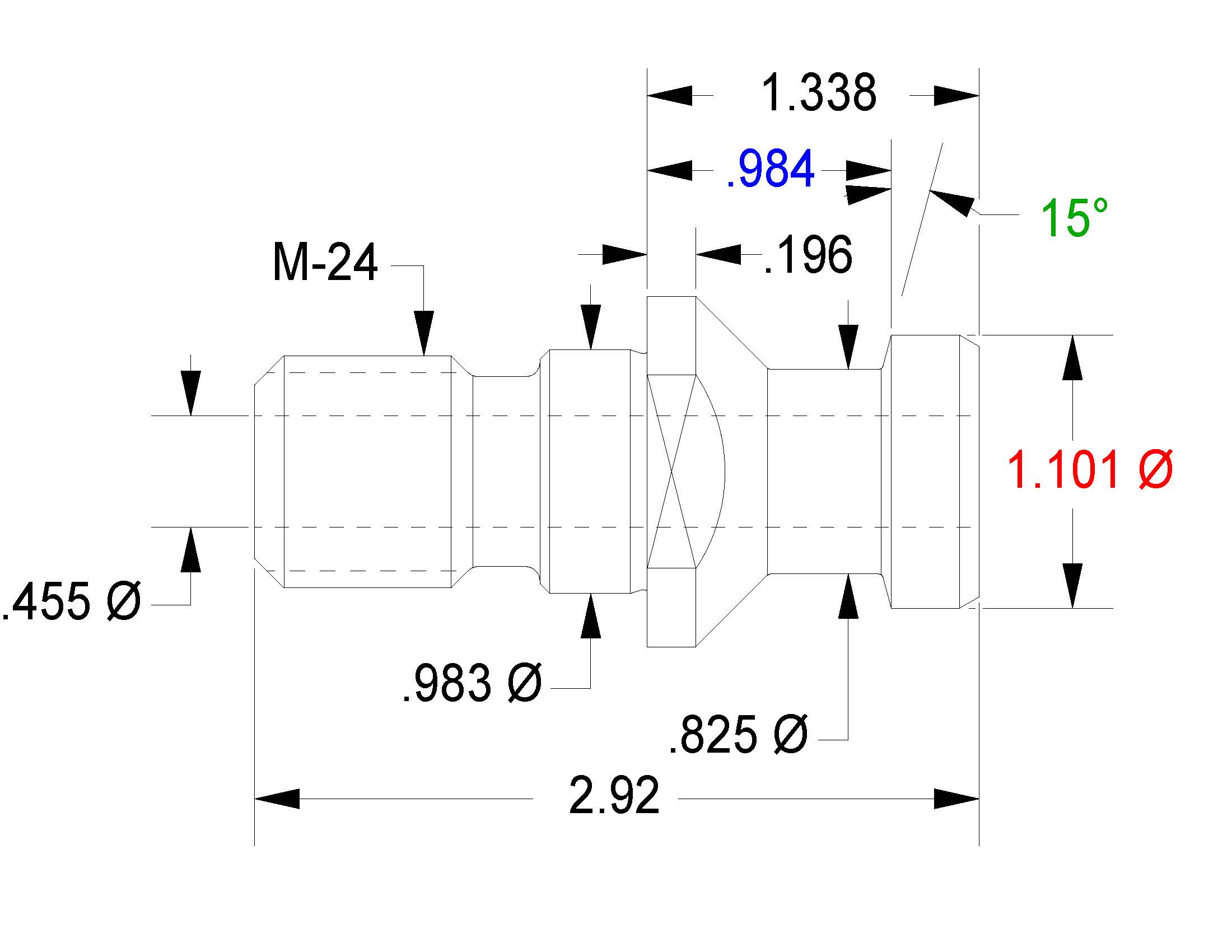

Standard retention knob, BT50, M24X3, 15°; Coolant through

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: M24X3.0
Angle: 15
Knob Diameter: 1.101
L1 Length: 0.9840
L2 Length: 1.339
Flange Thickness: 0.196
Hole Diameter: 0.453
Neck Diameter: 0.825
Pilot Diameter: 0.983
Shoulder Diameter: 1.413
Wrench Flat Diameter: 1.179
Socket Part #: RKW50M
Number: JM71144
Alternate Part: JM71144HT
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Retention Knob Supply: RK711-44
Sandvik: 393.2920-50 042
Seco: 1675
Techniks: 13005
Kenn 2: 2878522
Command: RS6M-0114-C
Davies: PSC-280X15
Kennametal: RK50DVM
Lyndex: B50-1500*
MSC: 1401868
Parlec: DIN50ATRK
For Machines (see disclaimer)*: Feeler, Heller, Kitamura, Lagun, Matsuura

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
