Home   ›   Shop   ›   JM71145

Standard retention knob, CAT50, 1"-8, 15°; Coolant through

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

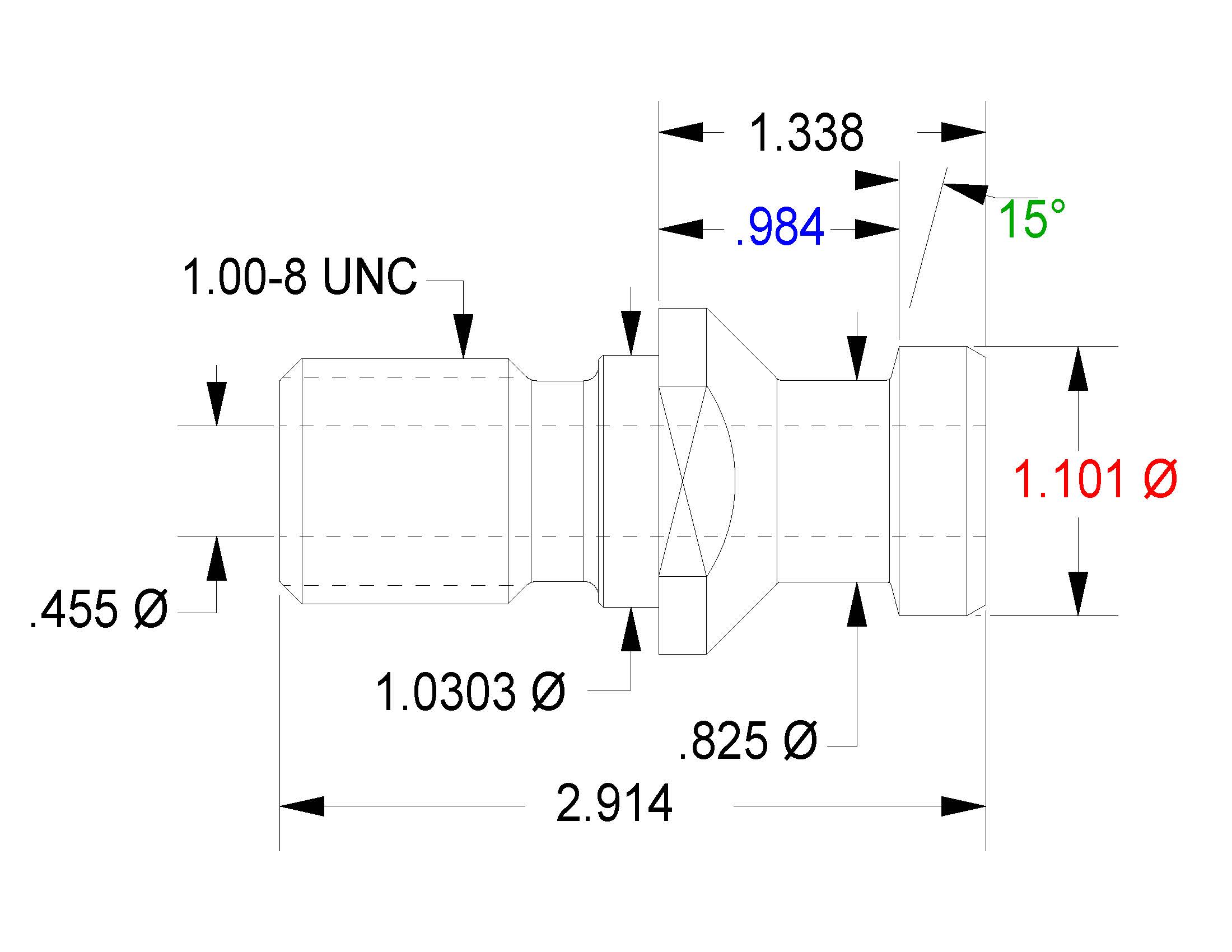

Thread Size: 1.00-8
Angle: 15
Knob Diameter: 1.101
L1 Length: 0.9840
L2 Length: 1.338
Flange Thickness: 0.197
Hole Diameter: 0.455
Neck Diameter: 0.825
Pilot Diameter: 1.031
Shoulder Diameter: 1.413
Wrench Flat Diameter: 1.177
Socket Part #: RKW50M
Number: JM71145
Solid Version: JM71147HT
Alternate Part: JM71145HT, JM71145HTHS
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
Retention Knob Supply: RK711-45
Seco: 1697
Techniks: 21008-15c
Kenn 2: 2878497
Command: RS6E-0114-C
Davies: PSC-270X15
MSC: 1401983
For Machines (see disclaimer)*: Feeler, Heller, Kitamura, Lagun, Matsuura

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
