High Torque© (HT) retention knob, CAT 50, 1"-8, 15°, Solid; replaces JM71147

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

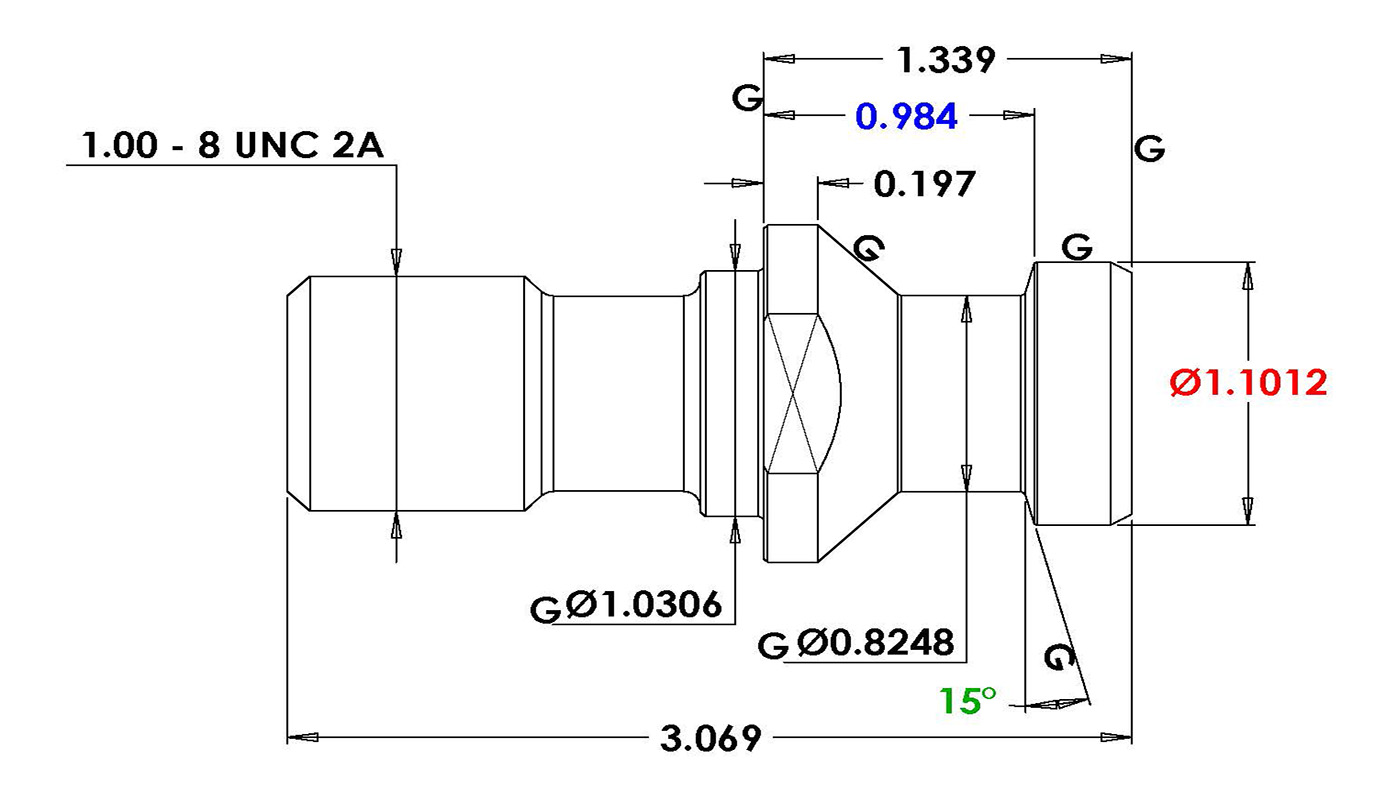

Thread Size: 1.00-8
Angle: 15
Knob Diameter: 1.101
L1 Length: 0.9840
L2 Length: 1.338
Flange Thickness: 0.196
Hole Diameter: -
Neck Diameter: 0.825
Pilot Diameter: 1.031
Shoulder Diameter: 1.413
Wrench Flat Diameter: 1.177
Socket Part #: RKW50M
Number: JM71147HT
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Kitamura

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email for knob identification help.
