JM71177HT

Home   ›   Shop   ›   JM71177HT

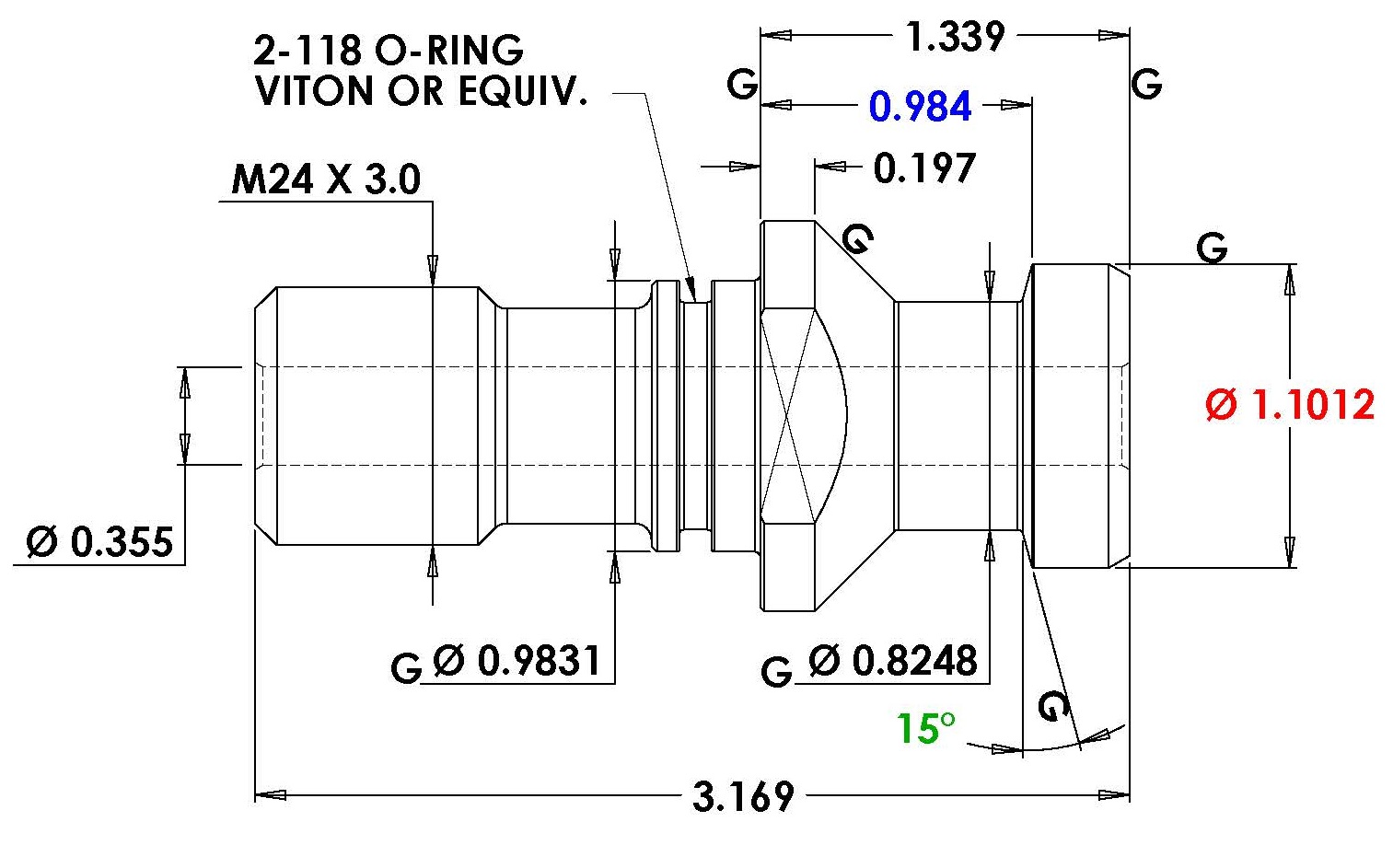

High Torque© (HT) retention knob, BT50, M24X3, 15°; Coolant through, O-Rings included

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: M24X3.0
Angle: 15
Knob Diameter: 1.101
L1 Length: 0.9843
L2 Length: 1.339
Flange Thickness: 0.197
Hole Diameter: 0.355
Neck Diameter: 0.825
Pilot Diameter: 0.983
Shoulder Diameter: 1.413
Wrench Flat Diameter: 1.179
Socket Part #: RKW50M
Number: JM71177HT
Thread Side O-Ring: P-21
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
